Configuring Ask to See Commands

Ask to See commands are API-based Botflows that enable users to retrieve identity and access-related information through conversational queries in the EmpowerID Chatbot. These commands must be explicitly defined and stored in your Azure Cosmos DB instance for each Bot tenant.

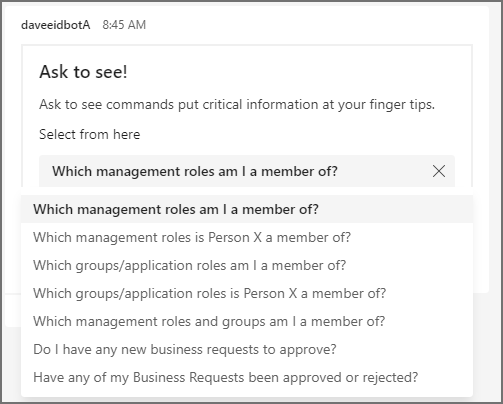

Ask to See Commands Overview

Prerequisites​

  • Access to the Azure portal with permissions to manage Cosmos DB
  • An existing bot_database for your Bot tenant
  • Your tenant's unique Tenant ID
  • Administrator-level permissions in EmpowerID

Configuration Overview​

To enable Ask to See commands, you must add a JSON document to the bot config container within your Cosmos DB instance. This document defines the API endpoints available to the chatbot and associates them with your specific tenant.

Step-by-Step Configuration​

1. Open Cosmos DB and Navigate to the Bot Config Container​

  1. Log in to the Azure Portal.
  2. Navigate to your Cosmos DB account hosting the bot database.
  3. Select the bot_database.
  4. In the left-hand menu, open Data Explorer.
  5. Select the bot config container.

2. Add the Configuration Document​

  1. Click New Item to create a new JSON document.
    Add New Item

  2. Paste the following JSON structure into the editor.

  3. Update the following fields with your actual Tenant ID:

    • id
    • realId
    • PartitionKey
    • tenantid
info

Required Naming Convention:
Use the format botcmdconfig_TenantID for the id, realId, and PartitionKey fields.

Example: botcmdconfig_0d8be8a9-3e46-4c80-8e50-4a1f7285c7c2

Sample JSON Configuration​

{
    "CreatedDateTimeUtc": "2021-02-24T02:02:33.1322562Z",
    "LastModifiedDateTimeUtc": "2021-02-24T02:02:33.1323052Z",
    "id": "botcmdconfig_0d8be8a9-3e46-4c80-8e50-4a1f7285c7c2",
    "realId": "botcmdconfig_0d8be8a9-3e46-4c80-8e50-4a1f7285c7c2",
    "document": {
        "$type": "TheDotNetFactory.Framework.BotWF.Common.BotTenantCommandConfiguration, BotService",
        "tenantid": "0d8be8a9-3e46-4c80-8e50-4a1f7285c7c2",
        "CreatedDateTimeUtc": "2021-02-24T02:02:25.6599971Z",
        "PartitionKey": "botcmdconfig_0d8be8a9-3e46-4c80-8e50-4a1f7285c7c2",
        "id": "botcmdconfig_0d8be8a9-3e46-4c80-8e50-4a1f7285c7c2",
        "commands": {
            "$type": "System.Collections.Generic.List`1[[TheDotNetFactory.Framework.BotWF.Common.BotCommand, BotService]], System.Private.CoreLib",
            "$values": [
                {
                    "$type": "TheDotNetFactory.Framework.BotWF.Common.BotCommand, BotService",
                    "Name": "WhichManagementRolesMe",
                    "Title": "Which management roles am I a member of?",
                    "ApiEndPoint": "/api/services/v1/AskToSee/WhichManagementRolesMe",
                    "Questions": null
                },
                {
                    "$type": "TheDotNetFactory.Framework.BotWF.Common.BotCommand, BotService",
                    "Name": "WhichManagementRolesPersonX",
                    "Title": "Which management roles is Person X a member of?",
                    "ApiEndPoint": "/api/services/v1/AskToSee/WhichManagementRolesPersonX",
                    "Questions": null
                },
                {
                    "$type": "TheDotNetFactory.Framework.BotWF.Common.BotCommand, BotService",
                    "Name": "WhichGroupsMe",
                    "Title": "Which groups/application roles am I a member of?",
                    "ApiEndPoint": "/api/services/v1/AskToSee/WhichGroupsMe",
                    "Questions": null
                },
                {
                    "$type": "TheDotNetFactory.Framework.BotWF.Common.BotCommand, BotService",
                    "Name": "groupsPersonX",
                    "Title": "Which groups/application roles is Person X a member of?",
                    "ApiEndPoint": "/api/services/v1/AskToSee/WhichGroupsPersonX",
                    "Questions": null
                },
                {
                    "$type": "TheDotNetFactory.Framework.BotWF.Common.BotCommand, BotService",
                    "Name": "WhichManagementRolesAndGroupsMe",
                    "Title": "Which management roles and groups am I a member of?",
                    "ApiEndPoint": "/api/services/v1/AskToSee/WhichManagementRolesAndGroupsMe",
                    "Questions": null
                },
                {
                    "$type": "TheDotNetFactory.Framework.BotWF.Common.BotCommand, BotService",
                    "Name": "bizRqApproved",
                    "Title": "Do I have any new business requests to approve?",
                    "ApiEndPoint": "/api/services/v1/AskToSee/WhichBusinessRequestsMe",
                    "Questions": null
                },
                {
                    "$type": "TheDotNetFactory.Framework.BotWF.Common.BotCommand, BotService",
                    "Name": "myBizApprovedReject",
                    "Title": "Have any of my Business Requests been approved or rejected?",
                    "ApiEndPoint": "/api/services/v1/AskToSee/WhichAprOrRejBusinessRequestsMe",
                    "Questions": null
                }
            ]
        }
    },
    "PartitionKey": "botcmdconfig_0d8be8a9-3e46-4c80-8e50-4a1f7285c7c2"
}

Available Ask to See Commands​

The following commands are available after the configuration is saved:

Command NameDescription
WhichManagementRolesMeLists management roles assigned to the current user
WhichManagementRolesPersonXLists management roles assigned to a specific user
WhichGroupsMeLists groups and application roles for the current user
groupsPersonXLists groups and roles for a specific person
WhichManagementRolesAndGroupsMeCombines roles and groups assigned to the current user
bizRqApprovedDisplays pending business requests requiring the user’s approval
myBizApprovedRejectShows status of the user’s submitted business requests (approved/rejected)
