Applications Page

Upon logging into Resource Admin, users are directly taken to the Applications page. This user-friendly interface streamlines application management by offering tabs, views, and controls for interacting with, creating, and updating both Azure and non-Azure applications. It also includes functionalities for managing Claims Mapping Policies related to Azure applications.

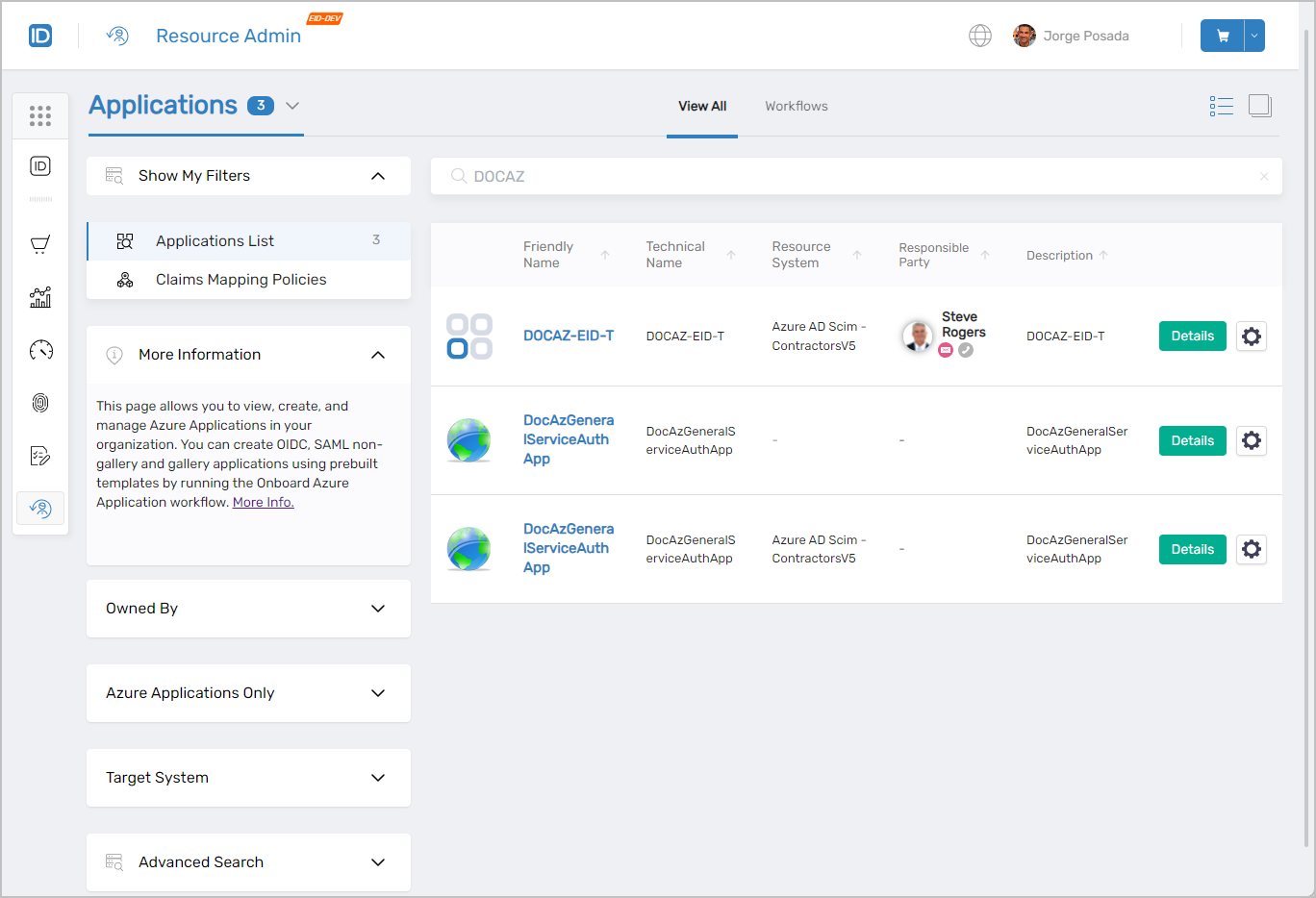

Applications page showing the main interface with filters and application listings

Features Available on the Applications Page

Upon navigating to the Applications page, users have the capability to search for specific applications and Claims Mapping Policies based on defined criteria and manage these objects as necessary.

Searching for Applications

In the EmpowerID Identity Warehouse, each object is associated with a SearchTerms property. This property contains specific search values, enabling users to retrieve all objects that match these criteria. For applications, SearchTerms encompasses the following properties:

• Name
• FriendlyName
• Description
• MatchingPattern

Utilizing these search terms returns all applications where the specified search value finds a match in any of those properties.

Example: Setting the search value to "PBAC" yields applications fulfilling any of these conditions:

• Any application with a name containing the string "PBAC"
• Any application with a display name including the string "PBAC"
• Any application with a description featuring the string "PBAC"

This enhanced search functionality ensures users can effectively and efficiently locate and manage applications within the Resource Admin interface.

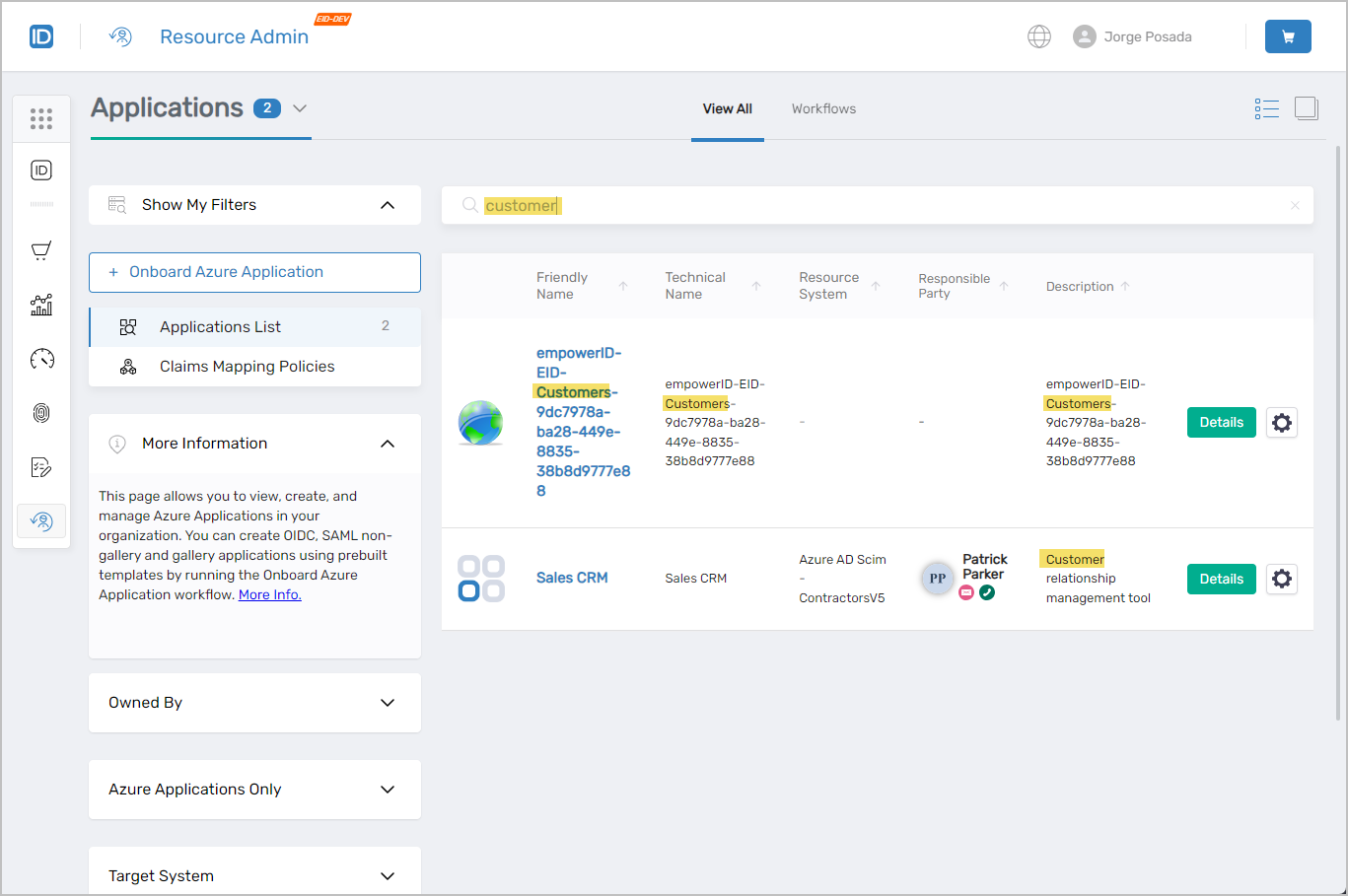

Search results showing applications matching the search criteria

Application Search Filters

To assist in navigating a potentially large number of records, Resource Admin provides various filters. These filters can be used alongside the search terms for a more focused and granular search experience.

Filter	Description
Owned By	This filter provides users with options to list applications based on ownership. Options include: Anybody – View all applications Myself – View only applications owned by the user Someone Else – View only applications owned by the specified person :::info Users must have the appropriate role assignment to see the Owned By filter. :::
Azure Applications Only	When selected, this filters non-Azure applications from search results.

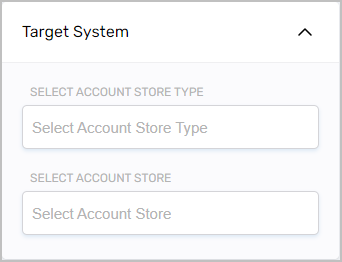

Target System	This filter provides users with options to list only those applications belonging to the selected account store type and/or account store. Select Account Store Type allows you to filter applications to display only those belonging to Account Stores configured with the selected Account Store Type. Select Account Store allows you to filter applications to display only those belonging to the selected Account Store. The filter is used in conjunction with the selected Account Store Type filter to display applications belonging to the selected account store.

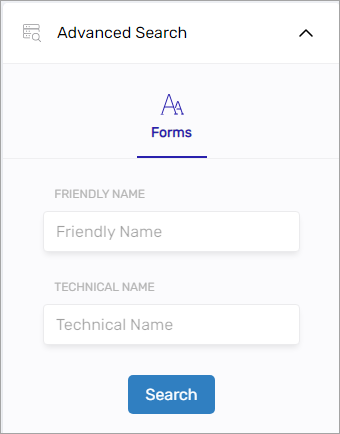

Advanced Search	Provides advanced search capabilities to further filter applications.

Interacting with Applications

Each application listed in Resource Admin is represented by a detailed record, providing users with essential context for interaction. By selecting the Details link in an application record, users are directed to a Details view. This view hosts a variety of tabs, allowing users to navigate through different sections to review and manage specific information about the application.

The nature of this information and the available management functions vary depending on the application type:

• Azure applications feature additional tabs such as Access Control and API Permissions, and include a contextual workflow button for initiating specialized workflows like the Manage Azure Application Wizard or Update Azure Applications API Permissions.

• PBAC apps with app rights assignments might offer different management options.

• Simple non-Azure and non-PBAC applications could provide basic functionality such as viewing and editing basic settings.

Contextual workflows available for Azure applications

Azure Applications

Clicking the Details button for an Azure application directs users to the Overview page. This page provides access to more in-depth information about the application with navigable tabs for managing aspects of it.

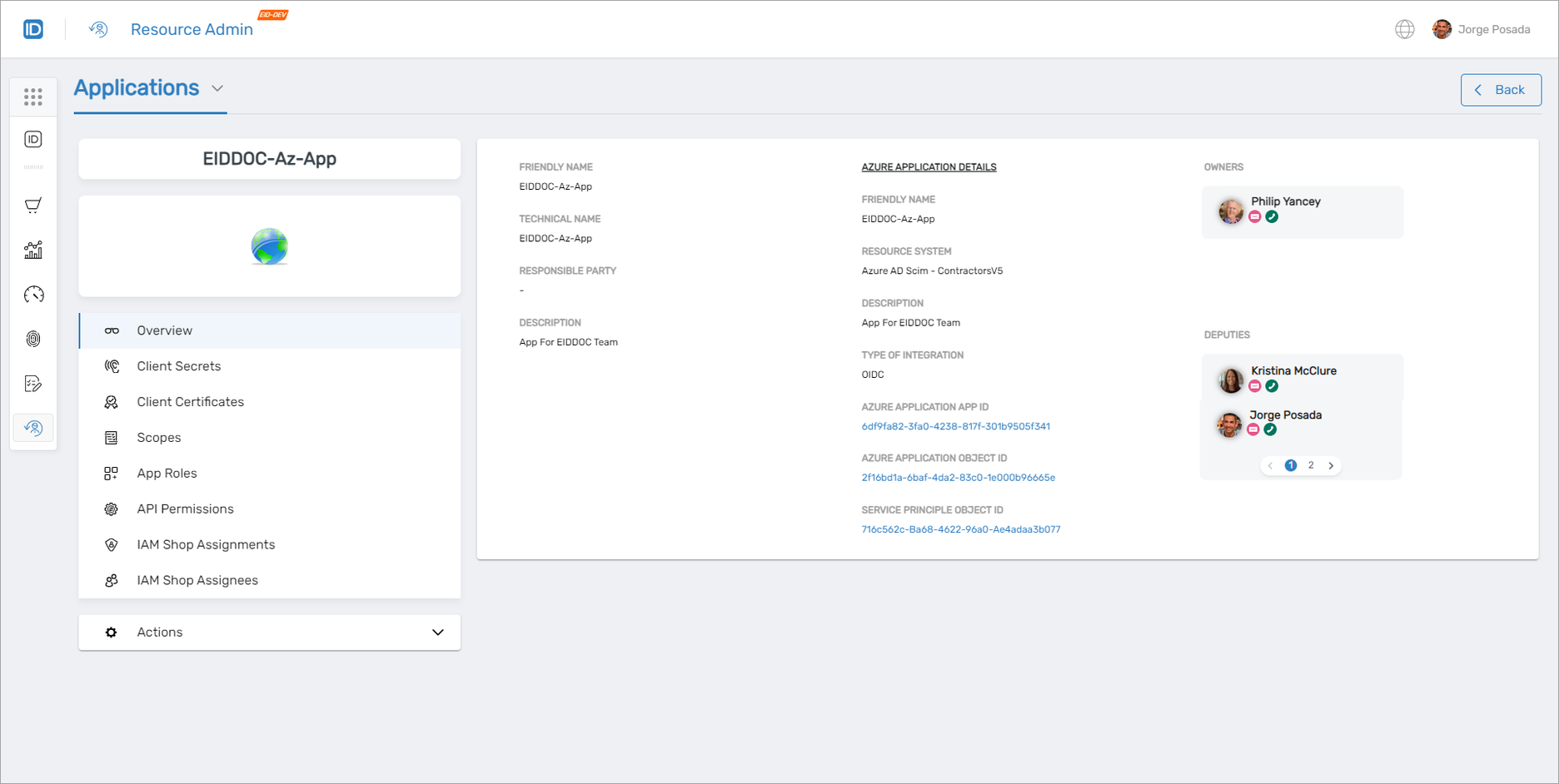

Azure application overview page with available tabs

Client Secrets

The Client Secrets tab grants access to view and manage client secrets for Azure applications. The following functionality is available to delegated users from this tab:

• View detailed information about existing app secrets
• Request access to app secrets
• Check out app secrets
• Add new client secrets
• Delete existing client secrets
• Run the Manage Credential Wizard workflow

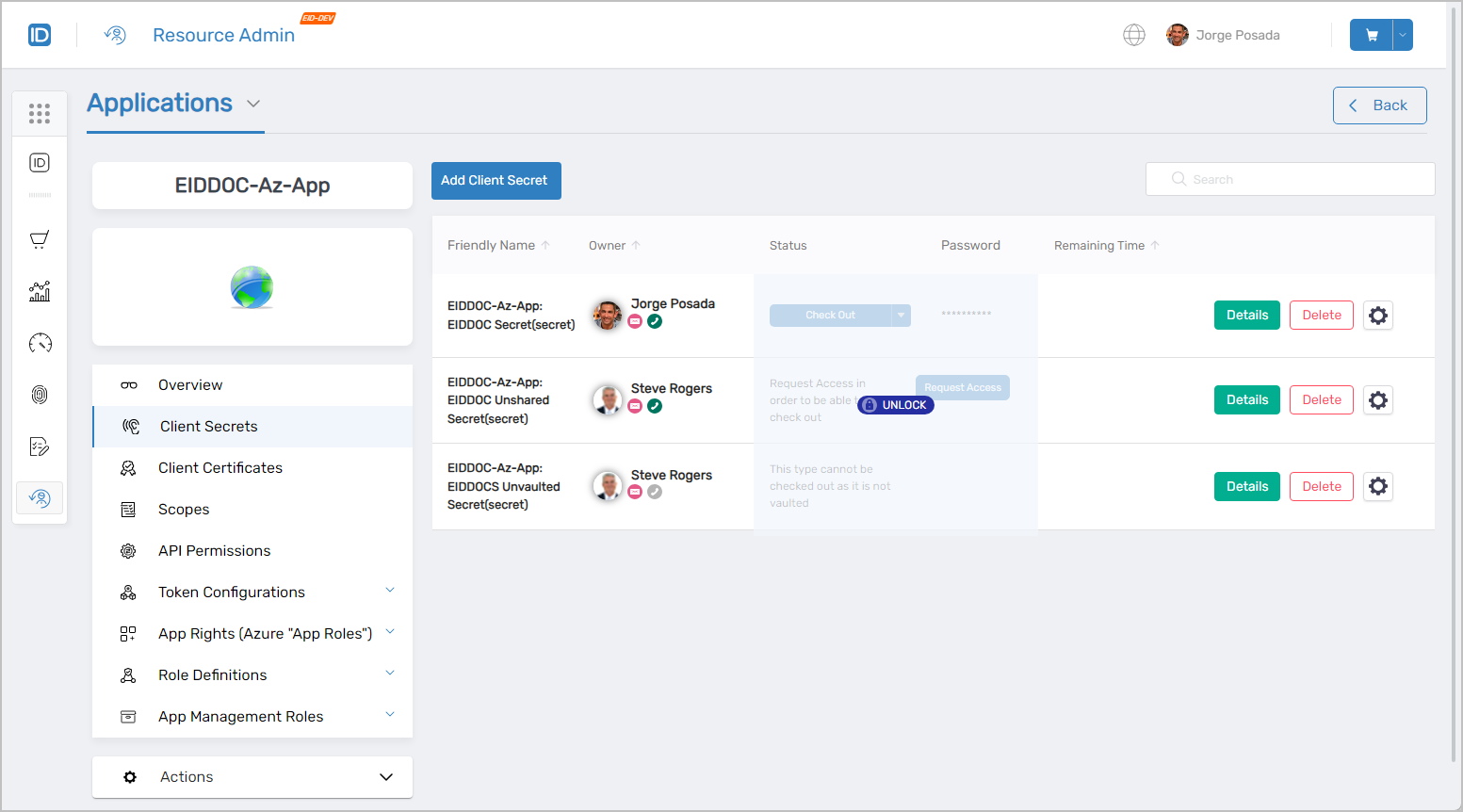

Client Secrets management interface

Client Certificates

The Client Certificates tab grants access to view and manage client certificates for Azure applications. The following functionality is available to delegated users from this tab:

• View detailed information about existing app certificates
• Request access to app certificates
• Check out app certificates
• Add new client certificates
• Delete existing client certificates
• Run the Manage Credential Wizard workflow

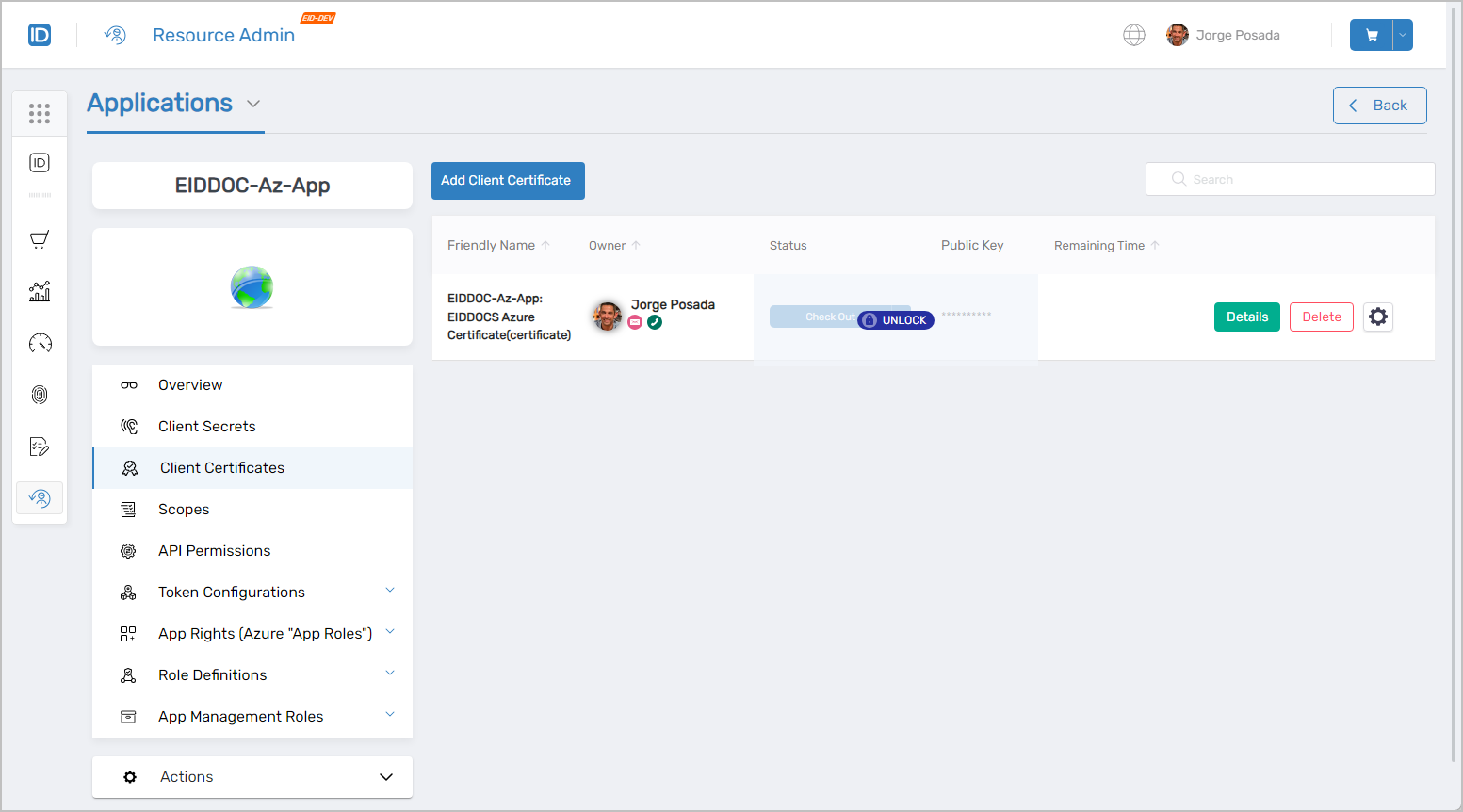

Client Certificates management interface

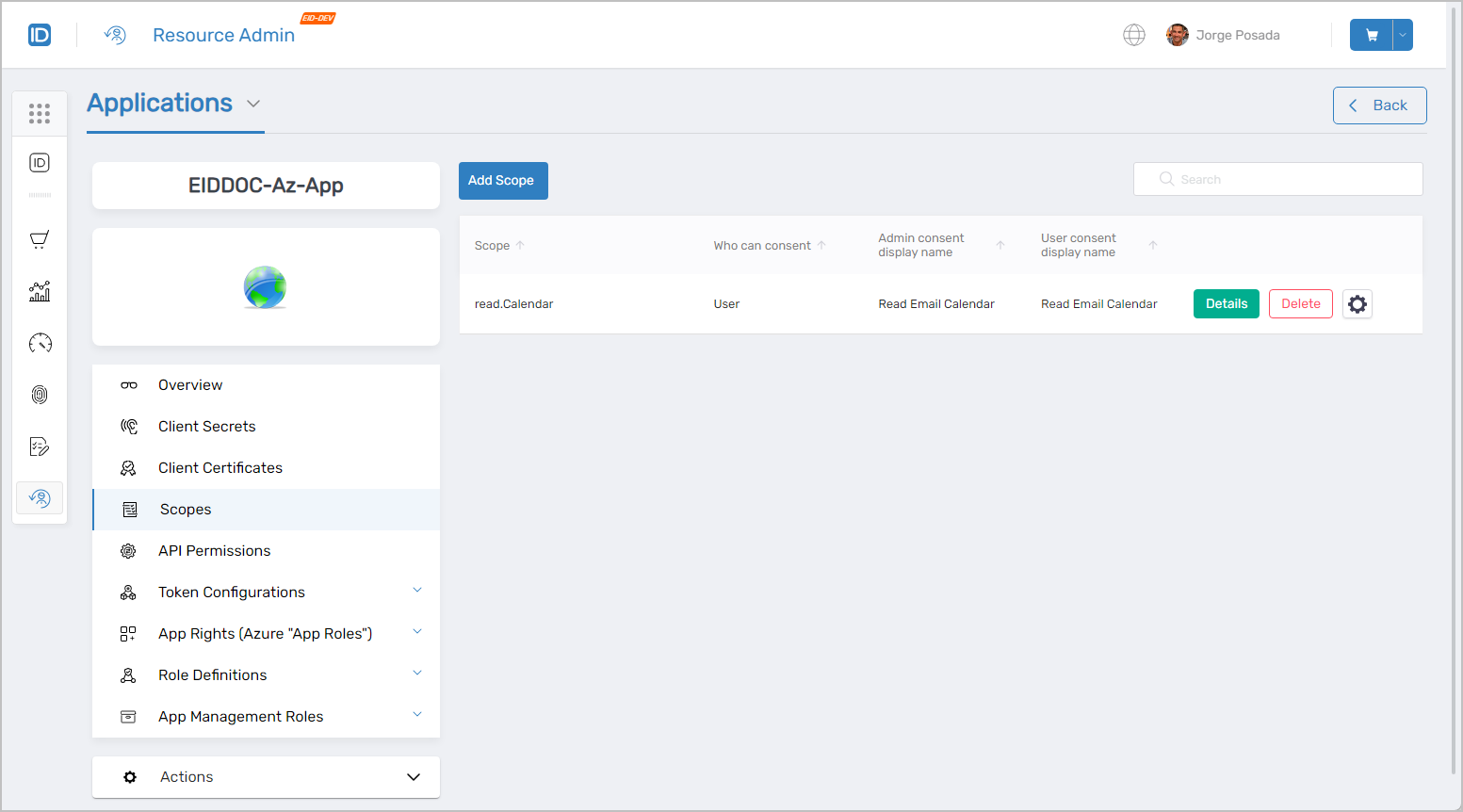

Scopes

The Scopes tab grants access to view and manage scopes for Azure applications. The following functionality is available to delegated users from this tab:

• View detailed information about existing scopes
• Add new scopes to the application
• Delete scopes from the application

Scopes management interface

API Permissions

The API Permissions tab grants access to view and manage the delegated and applications permissions for Azure applications. The following functionality is available to delegated users from this tab:

• View detailed information about existing API permissions
• Add new API permissions to the application
• Delete existing API permissions from the application

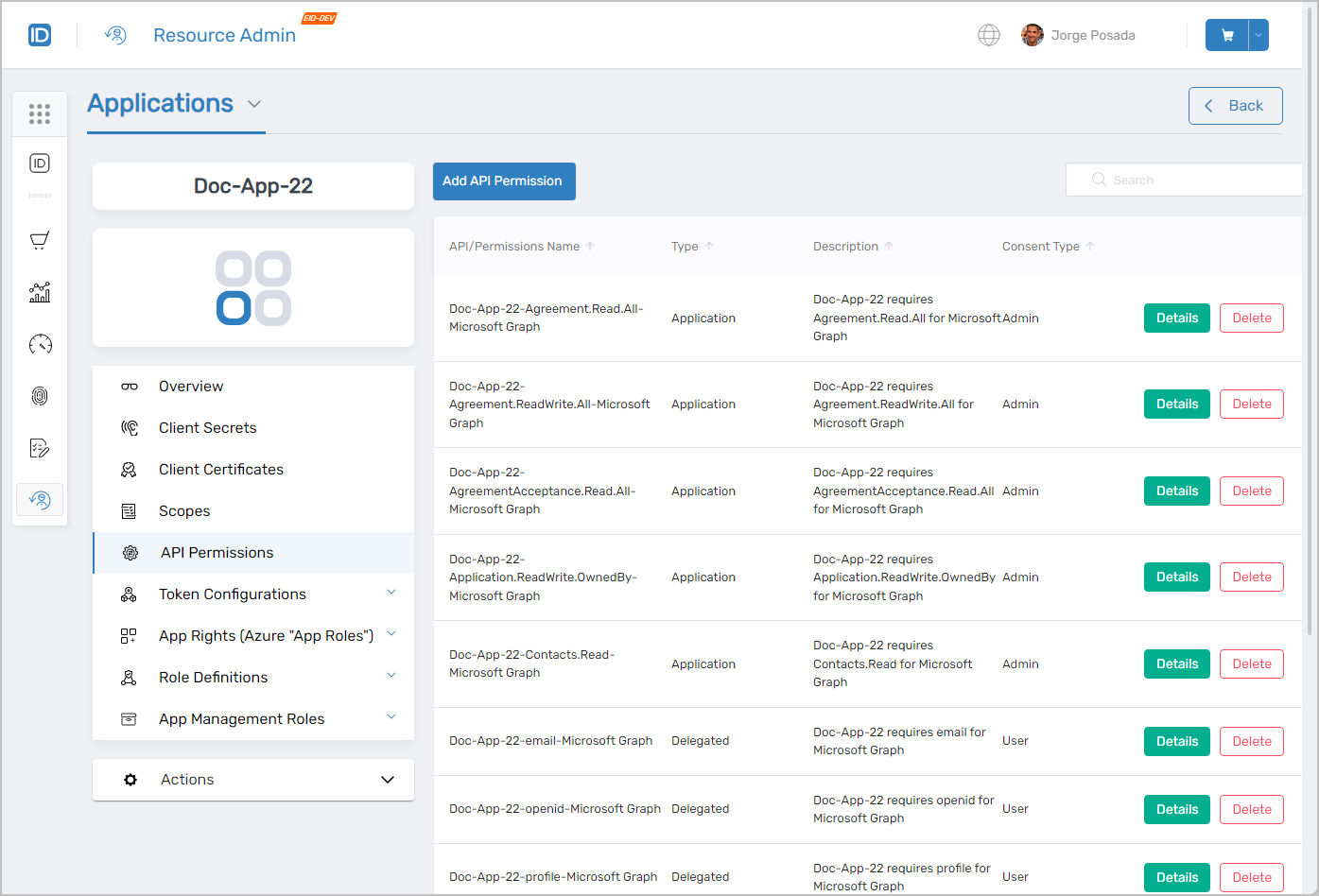

API Permissions management interface

Token Configurations

The Token Configurations tab grants access to view and manage the claims for Azure applications. The following functionality is available to delegated users from this tab:

• View detailed information about existing claims
• Add claims to the application
• Remove claims from the application

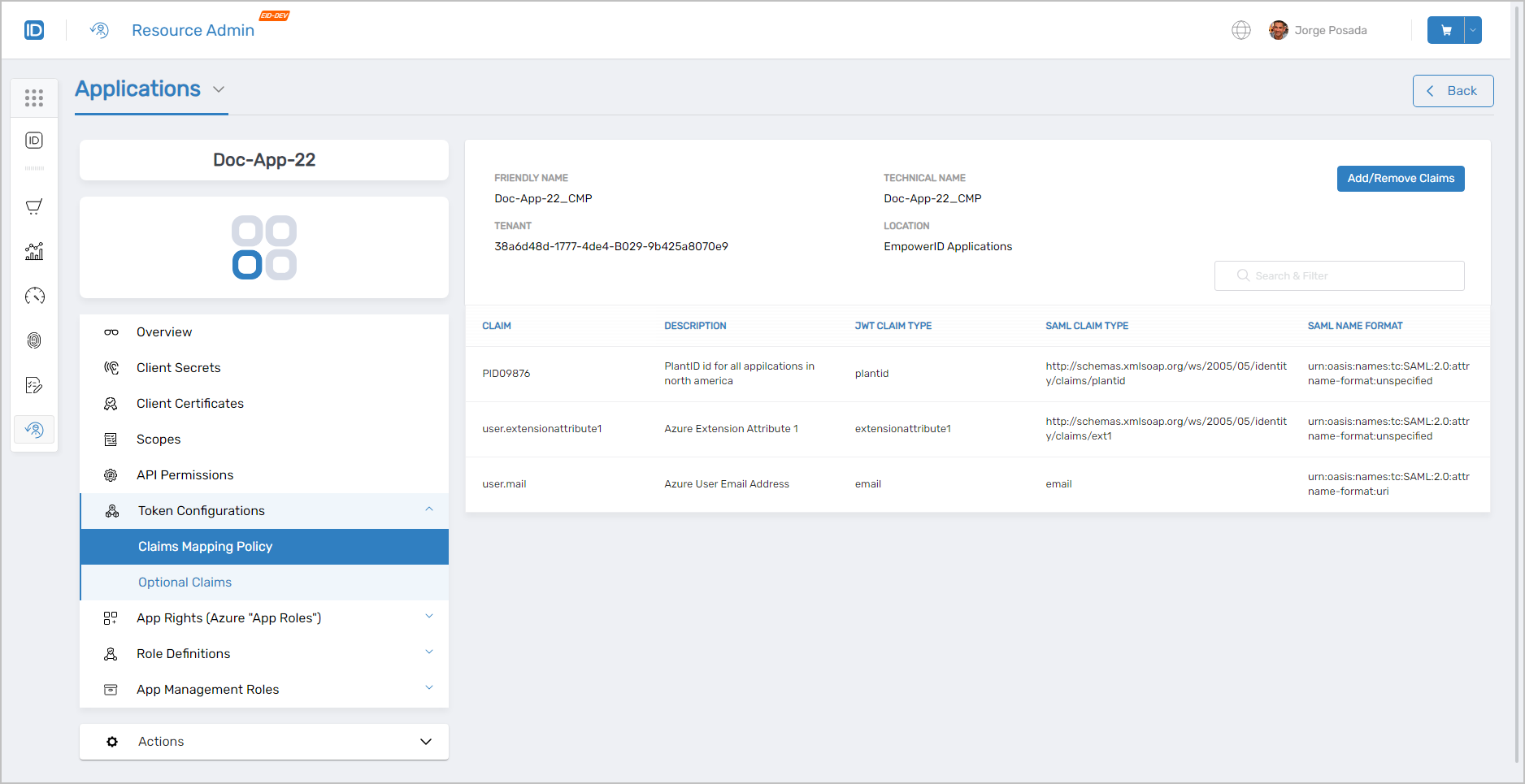

Token Configurations management interface

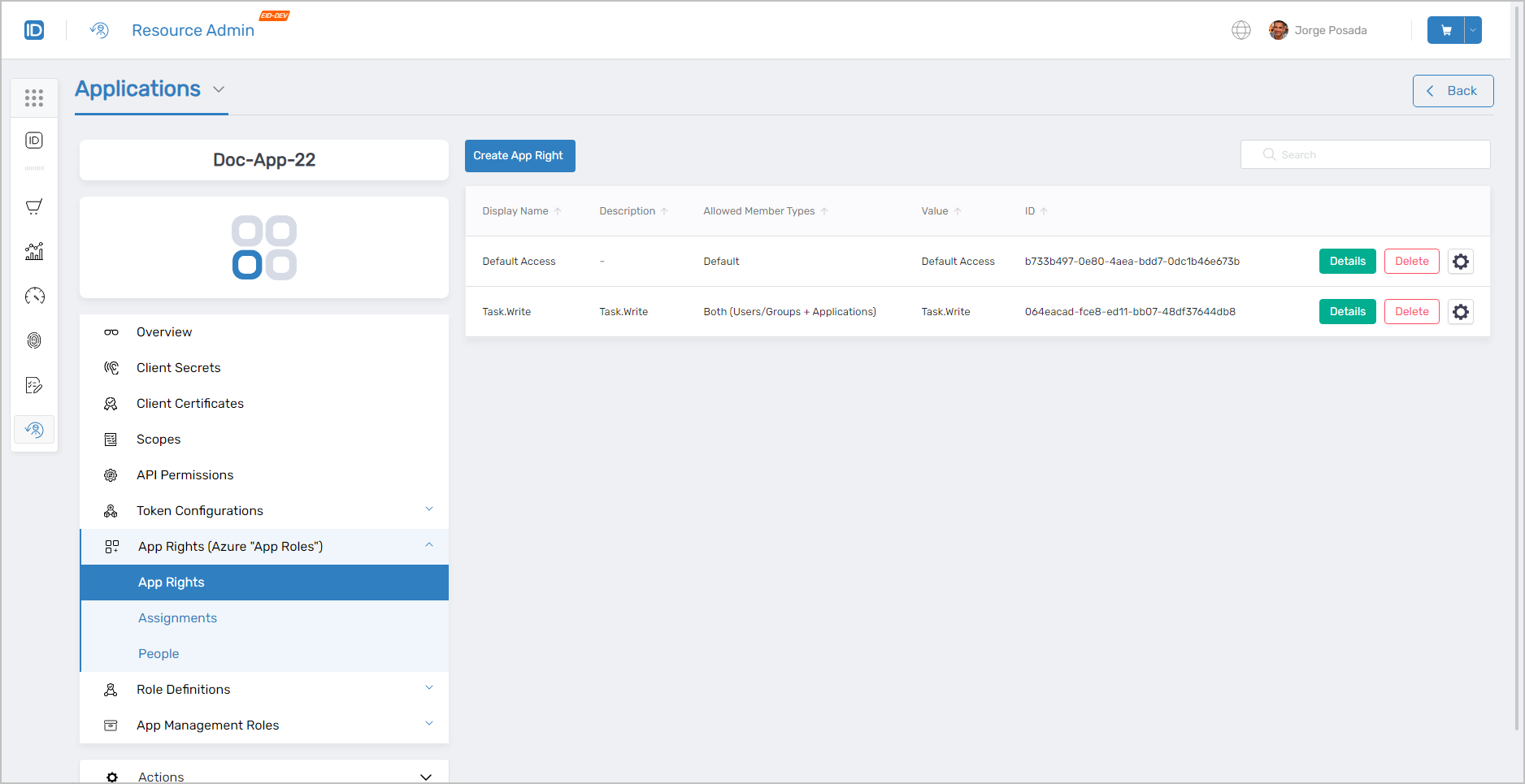

App Rights (Azure "App Roles")

The App Rights (Azure "App Roles") tab grants access to view and manage app rights for Azure applications. The following functionality is available to delegated users from this tab:

• View detailed information about existing app rights
• Create new app rights for the application
• Delete app rights from the application
• View app right assignments
• Assign app rights to users
• Remove app rights from users
• View people with app rights to the application

App Rights management interface

Role Definitions

The Role Definitions tab grants access to view and manage app role definitions for Azure applications. The following functionality is available from this tab:

• View detailed information about existing app role definitions
• Create app role definitions for the application
• Delete app role definitions from the application
• View app role assignments
• Assign app roles to users
• Remove app roles from users
• View people with app roles

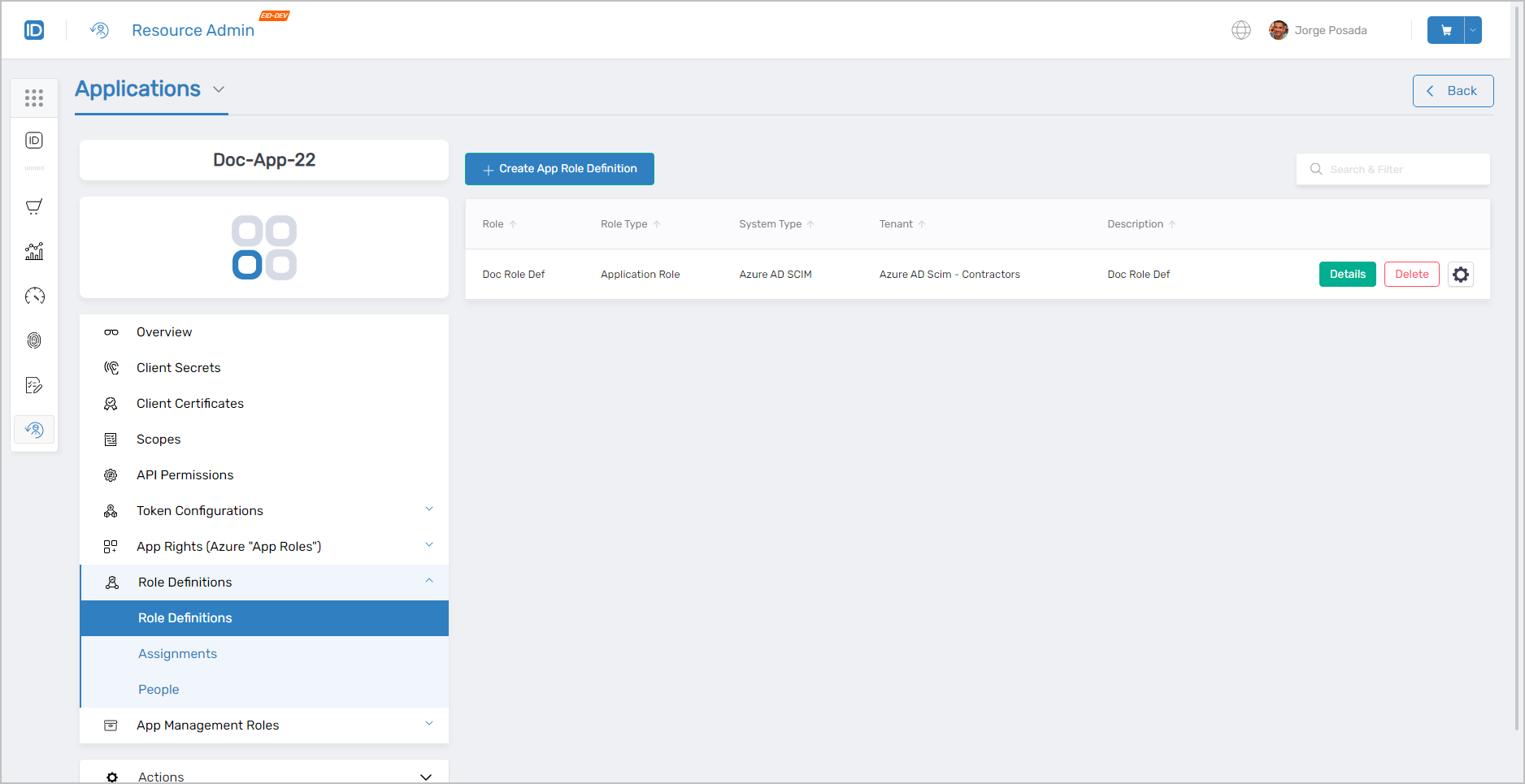

Role Definitions management interface

App Management Roles

In the App Management Roles tab, users with the necessary permissions can comprehensively manage App Management Roles specific to Azure applications. The functionalities available in this tab include:

• View Detailed Information About Existing App Management Roles: This feature allows users to access in-depth details about each Management Role, including its scope, associated permissions, and configuration.

• Create App Management Roles: Users can create new Management Roles, tailoring them to specific needs and requirements within the Azure application environment.

• Delete App Management Roles: This option provides the ability to remove existing Management Roles that are no longer required, ensuring a streamlined and relevant role structure.

• View People Assigned to Management Roles as Members: Administrators can view a list of individuals who are assigned to each Management Role, offering insights into role distribution and user responsibilities.

• View Direct Access Granted to the Management Roles: This functionality shows the specific access rights directly granted to each Management Role, helping in understanding their direct influence within the Azure environment.

• View Total Access Granted to the Management Roles: Users can see the cumulative access privileges of each Management Role, including both direct and indirect access rights, for a complete overview of role-based access within the application.

Actions

The Actions tab within the Resource Admin system is designed to offer a dynamic and context-sensitive user experience. Depending on the application tab selected, it presents relevant workflows that align with the current focus of the user. For instance:

• When on the Overview tab, the Actions tab provides links to initiate workflows like the Manage Azure Application Wizard and the Update Azure Application API Permissions. These workflows are tailored to provide comprehensive management and configuration capabilities for the Azure application.

• Conversely, when the user navigates to the Client Secrets tab, the Actions tab adapts to display links for specific workflows such as the Delete Azure Application Client Secrets. This ensures that users have immediate access to pertinent actions related to client secrets management.

This adaptive approach streamlines workflow initiation, making it more intuitive and efficient by presenting users with options that are directly relevant to their current task or area of focus within the application.

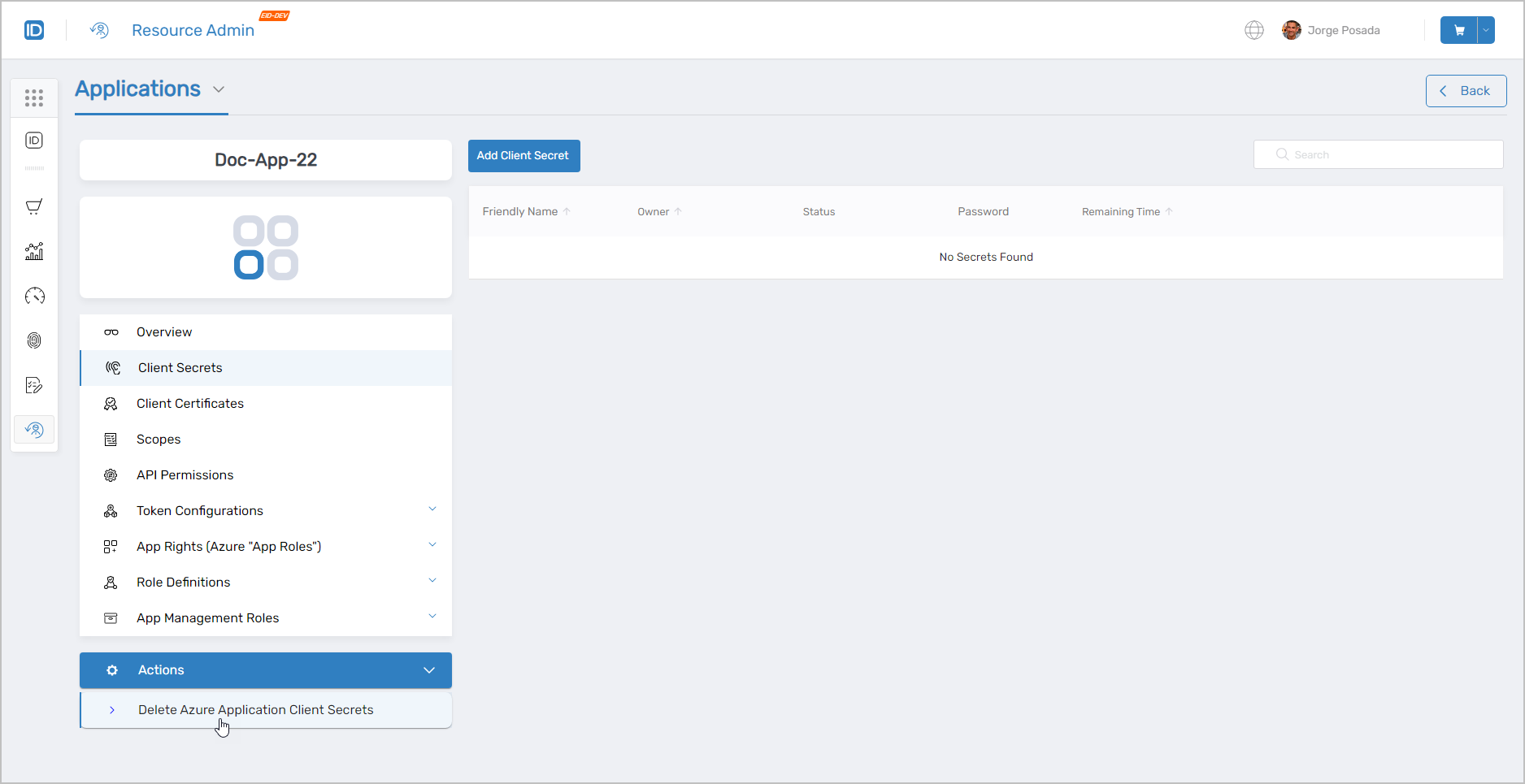

Context-sensitive Actions tab showing relevant workflows

Claims Mapping Policies

Claims Mapping Policies (CMP) in Azure AD are essential for controlling the identity information sent to an application during user sign-in. To manage these policies in your organization, the Claims Mapping Policies tab is your go-to resource. This tab is specifically available for Azure apps and offers various search filters to facilitate easy management and retrieval of CMPs.

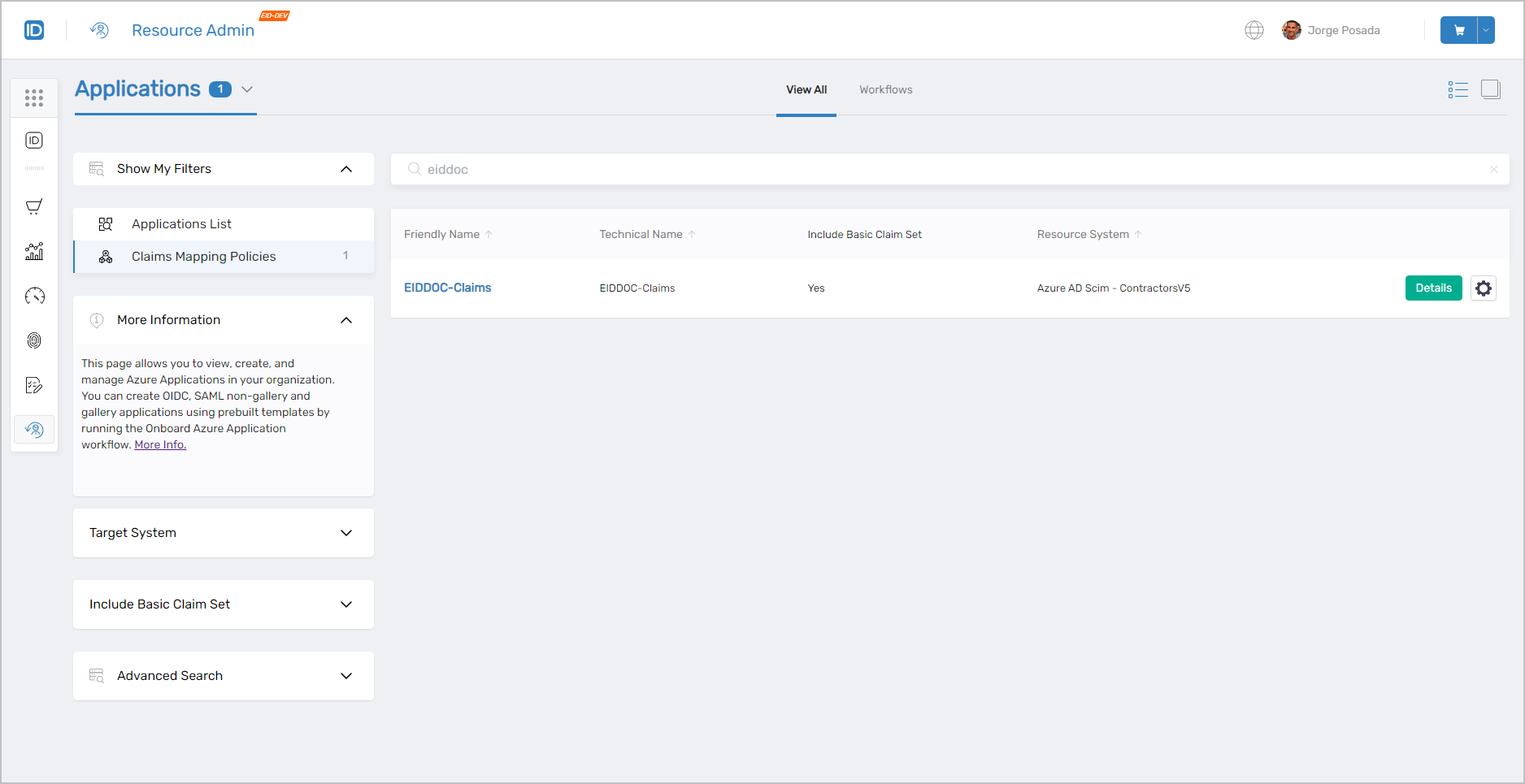

Claims Mapping Policies management interface

Claims Mapping Policies Search Filters

In managing CMPs, search filters play a crucial role in simplifying the search process. Multiple filters can be used for more granular searching.

Filter	Description
Target System	This filter provides users with options to list only those Claims Mapping Policies belonging to applications in the selected account store type and/or account store. Select Account Store Type allows you to filter Claims Mapping Policies to display only those belonging to Account Stores configured with the selected Account Store Type. Select Account Store allows you to filter Claims Mapping Policies to display only those belonging to the selected Account Store. The filter is used in conjunction with the selected Account Store Type filter to display Claims Mapping Policies belonging to the selected account store.
Include Basic Claim Set	This filter provides users with options to list Claims Mapping Policies meeting the following criteria: All – Returns all Claims Mapping Policies Yes – Returns Claims Mapping Policies that have a basic claim set No – Returns Claims Mapping Policies that do not have a basic claim set
Advanced Search	Provides advanced search capabilities to further filter Claims Mapping Policies.

PBAC Applications

As with Azure applications, clicking the Details button for a PBAC application directs users to the Overview page. This page provides access to more in-depth information about the application and navigable tabs for managing aspects of it.

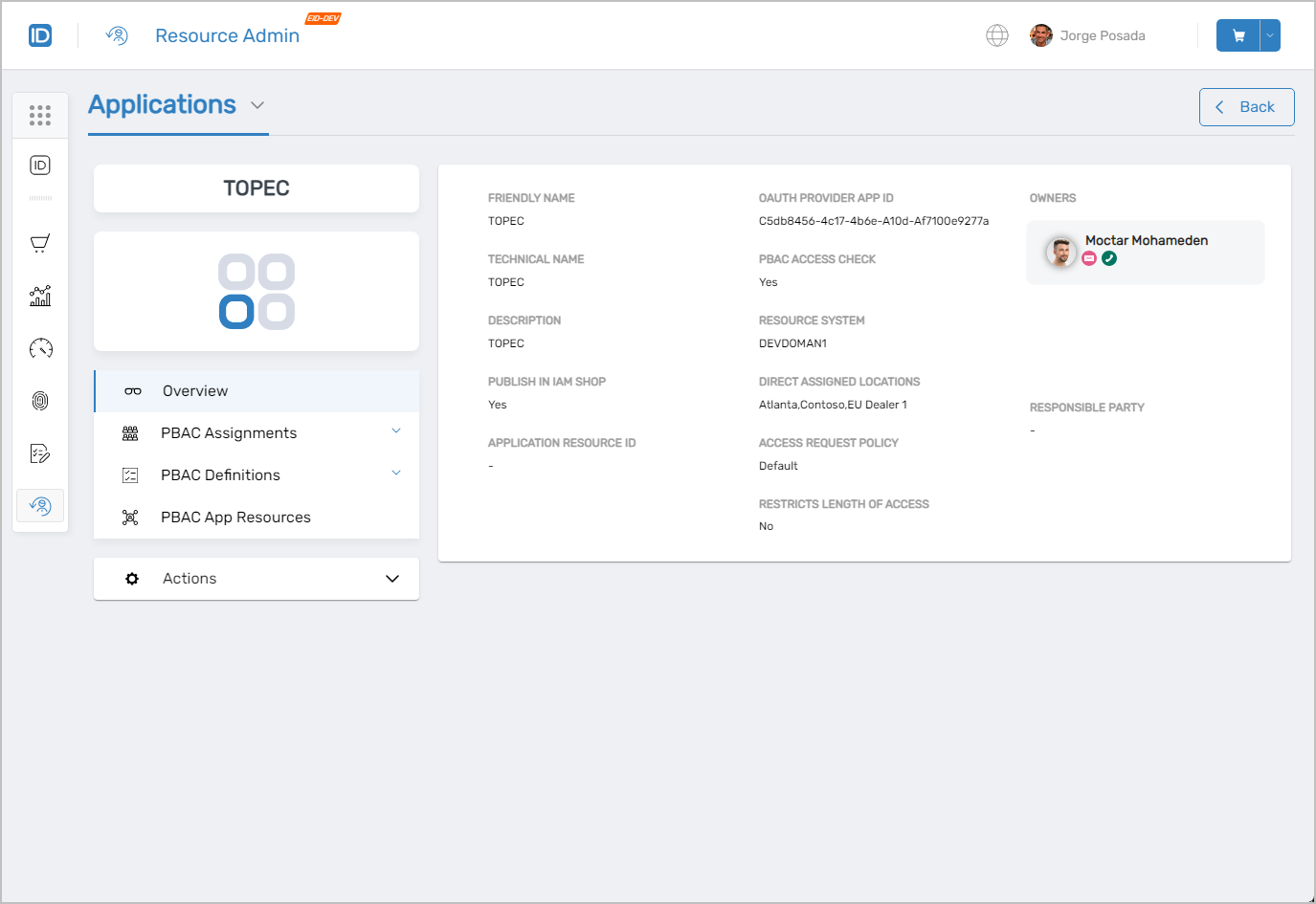

PBAC application overview page

PBAC Assignments

The PBAC Assignments tab is a crucial feature for administrators managing PBAC applications, allowing them to oversee PBAC Definition assignments effectively. Within this tab, users with appropriate permissions have access to the following functionalities:

• Assign Role Definitions: Users can assign specific Role Definitions to individuals or groups within the application, tailoring access control according to organizational requirements.

• Delete Role Definitions: This functionality enables the removal of existing Role Definitions, an essential aspect of maintaining up-to-date and relevant access controls.

• View People with Role Definition Assignments: Administrators can view a list of individuals who have been assigned specific Role Definitions, offering clarity and oversight on who has access to certain application functionalities.

• Edit the Role Definition Assignments for People: This feature allows for the modification of existing Role Definition assignments, ensuring that access rights remain aligned with the current roles and responsibilities of individuals.

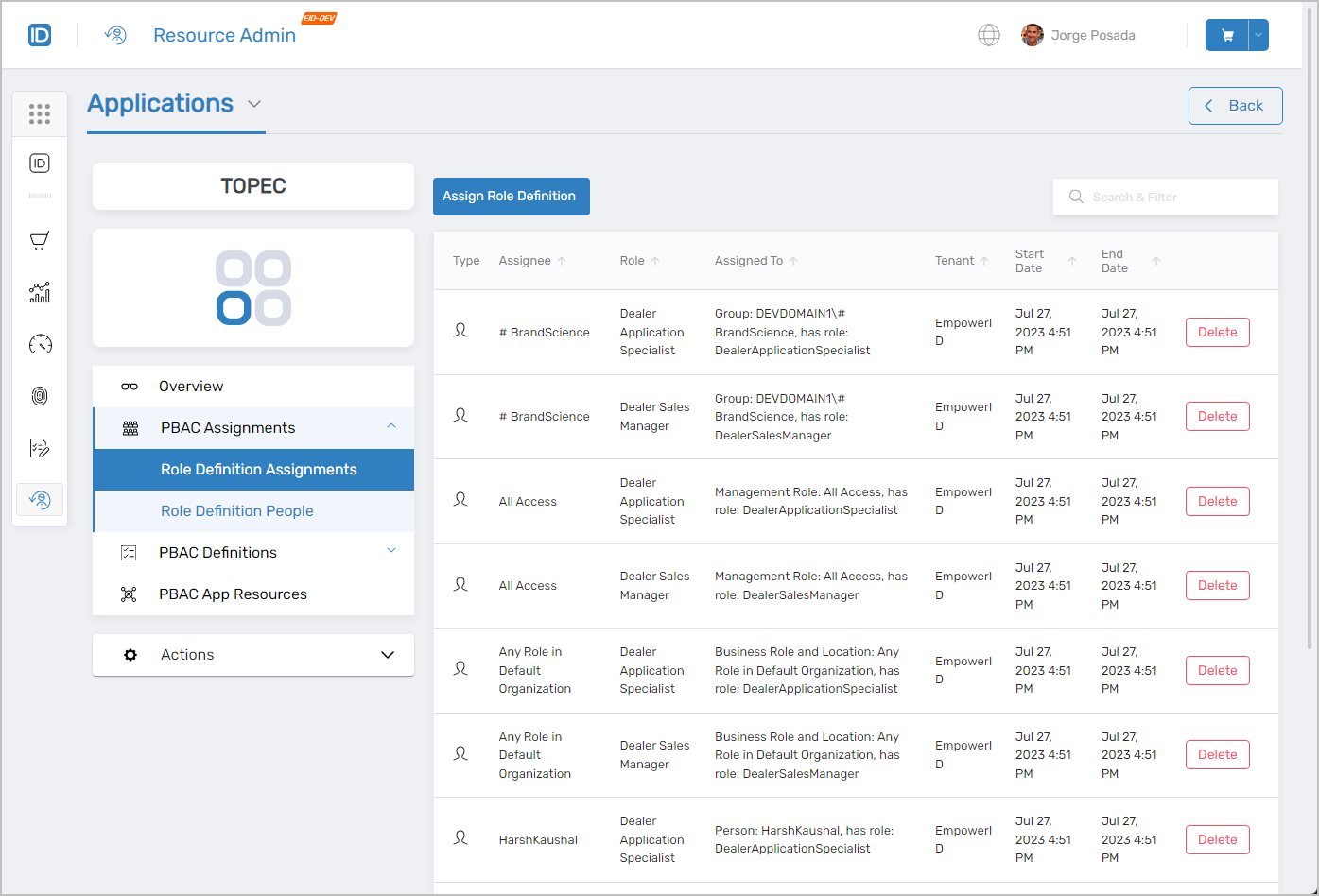

PBAC Assignments management interface

PBAC Definitions

In the PBAC Definitions tab, users have access to a range of functionalities for comprehensive management of PBAC Definition assignments in PBAC applications. These include:

App Rights:

• View detailed information about existing App Rights
• Create new App Rights for specific applications
• Delete App Rights from the application
• Assign specific App Rights to roles or users

App Role Definitions:

• View detailed information about existing App Role Definitions
• Create new App Role Definitions to streamline access control
• Delete App Role Definitions as needed
• Add or Remove App Rights to/from these definitions for precise role management

App Management Roles:

• Create and Delete App Management Roles, enabling customized role-based access management within applications

PBAC Resource Types:

• Create, Edit, and Delete Resource Types, allowing for the customization and fine-tuning of resource-based access controls

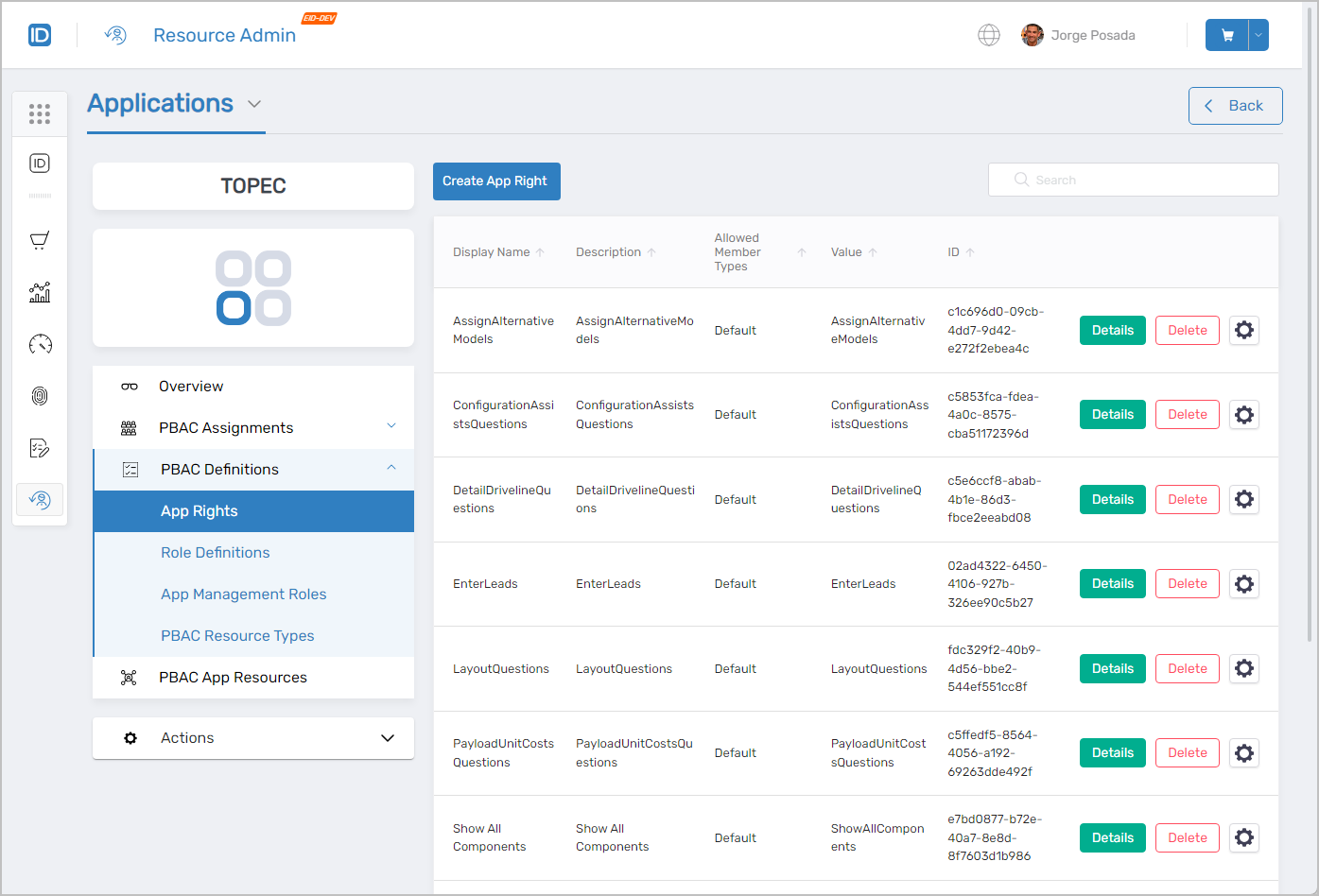

PBAC Definitions management interface

Application Workflows Page

The Workflows page in the Resource Admin system is a dedicated page where authorized users can access and manage a variety of workflows related to applications. This page is designed to provide a centralized location for overseeing application-specific processes, ranging from onboarding Azure applications and Claims Mapping Policies to configuration and update procedures.

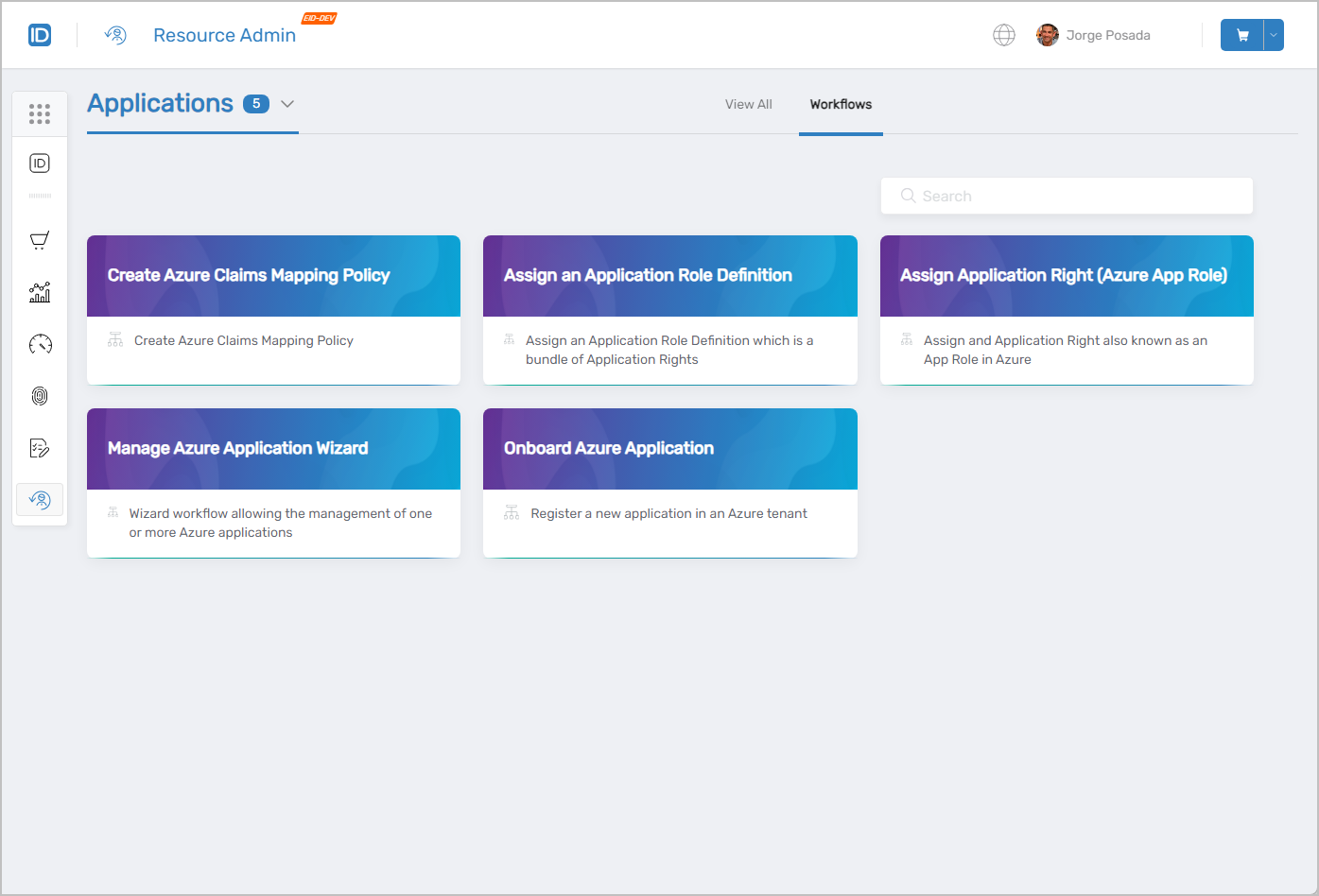

Available workflows for application management
