Universal Connector Integration Details

EmpowerID provides a Universal Connector that can be used for inventorying and managing resources originating in account stores for which EmpowerID does not provide a specific out-of-the-box connector, such as HR systems and custom applications via a Universal Connector database.

Using the Universal Connector requires that data from your external system be imported into the Universal Connector database via the technology of your choice—such as scripting, an ETL tool like Microsoft SSIS, or custom code—according to the schema defined by EmpowerID.

Prerequisite

To use this topic effectively, you should have a good understanding of SQL and database principles.

Inbound Data

EmpowerID provides the following tables for importing data from an external system into the Universal Connector database:

• User Table — Defines all attributes of user accounts.
• Group Table — Defines groups and distribution lists.
• Location Table — Defines hierarchical or organizational locations.
• Business Role Table — Defines business roles.
• UserGroup Table — Maps users to groups.
• UserBusinessRoleLocation Table — Maps users to Business Role + Location combinations.

The following sections describe the schema for each table in full detail.

User Table

The User table defines all attributes of user accounts from your external system. Each record is synchronized into EmpowerID as an account object.

Field	Data Type	Max Length (Bytes)	Optional	Default	Description
UserGUID	uniqueidentifier	16	No	(newid())	Uniquely identifies a user account in EmpowerID. If this field is blank, EmpowerID will generate the guid. This field should never be updated for the life of the record.
UserID	nvarchar(200)	400	No		Specifies the UserID for a user in the external system. This value is derived from the external system and must be unique for each user. This field should never be deleted or updated for the life of the record.
LogonName	nvarchar(200)	400	No		Specifies the logon name for the user account. This value must be unique for each user and can be set to any desired value, such as a user's EmployeeID contained within an external system or a combination of data that can be found, derived or calculated from an external system. If this field is blank, EmpowerID will generate a unique logon name for each user record.
Active	bit	1	No	((1))	Specifies whether a user is active. This field can be used in place of the Status field.
FriendlyName	nvarchar(255)	510	Yes		Specifies the name shown to users in EmpowerID user interfaces. The field maps to the DisplayName attribute in Active Directory.
Name	nvarchar(255)	510	Yes		Specifies the account name. This value should be unique and maps to the CN or DistinguishedName in Active Directory.
FirstName	nvarchar(50)	100	Yes		Specifies the first name of the user and maps to the givenName attribute in Active Directory.
MiddleName	nvarchar(50)	100	Yes		Specifies the middle name of the user and maps to the middleName attribute in Active Directory.
LastName	nvarchar(50)	100	Yes		Specifies the last name of the user. Maps to the LastName field in Active Directory.
Email	nvarchar(255)	510	Yes		Specifies the email address of the user. The value of this field can be used to set the email address of the user in Exchange when an Exchange Resource Entitlement exists. Additionally, this field is used by EmpowerID to determine whether the specific user account needs to be joined to an EmpowerID Person.
EmployeeID	nvarchar(50)	100	Yes		Specifies the Employee ID of the user in the external system and will set the EmployeeID attribute of the user in Active Directory. When used, this value must be unique for each user. Additionally, this field is used by EmpowerID to determine whether the specific user account needs to be joined to an EmpowerID Person.
BusinessRoleID	nvarchar(200)	400	Yes		Specifies the Business Role ID of the Business Role associated with the user in EmpowerID. See Note A.
BusinessRoleName	nvarchar(200)	400	Yes		Specifies the Business Role Name of the Business Role associated with the user in EmpowerID. See Note A.
LocationID	nvarchar(200)	400	Yes		Specifies the ID of the Location associated with the user in EmpowerID. See Note B.
LocationName	nvarchar(200)	400	Yes		Specifies the name of the Location associated with the user in EmpowerID. See Note B.
ManagerLogonName	nvarchar(200)	400	Yes		Specifies the LogonName of the user's manager, if any. If populated, the field will be used to set the user's direct manager in EmpowerID. When populating user manager data, you can elect to set this field or the ManagerAccountID field.
ManagerAccountID	nvarchar(200)	400	Yes		Specifies the User ID of the user's manager, if any. If populated, the field will be used to set the user's direct manager in EmpowerID. When populating user manager data, you can elect to set this field or the ManagerLogonName field.
Telephone	nvarchar(50)	100	Yes		Specifies the primary telephone number of the user's place of business and maps to the telephoneNumber attribute in Active Directory.
MobileNumber	nvarchar(50)	100	Yes		Specifies the mobile number of the user and maps to the mobile attribute in Active Directory.
BusinessPhone	nvarchar(50)	100	Yes		Specifies the business telephone number of the user.
HomePhone	nvarchar(50)	100	Yes		Specifies the home telephone number of the user and maps to the homePhone attribute in Active Directory.
StreetAddress	nvarchar(255)	510	Yes		Specifies the street address of the user and maps to the streetAddress attribute in Active Directory.
StreetAddress2	nvarchar(255)	510	Yes		Specifies a secondary street address of the user.
City	nvarchar(100)	200	Yes		Specifies the city where the user is located and maps to the l attribute in Active Directory.
State	nvarchar(100)	200	Yes		Specifies the state where the user is located and maps to the st attribute in Active Directory.
Country	nvarchar(50)	200	Yes		Specifies the country where the user is located and maps to the co attribute in Active Directory.
Province	nvarchar(100)	200	Yes		Specifies the province where the user is located.
Company	nvarchar(256)	512	Yes		Specifies the user's company name and maps to the company attribute in Active Directory.
Department	nvarchar(256)	512	Yes		Specifies the user's department name and maps to the department attribute in Active Directory.
DepartmentNumber	nvarchar(50)	100	Yes		Specifies the user's department number and maps to the departmentNumber attribute in Active Directory.
OfficeLocation	nvarchar(450)	900	Yes		Specifies the location or address of the user's office and maps to the physicalDeliveryOfficeName attribute in Active Directory.
Location	nvarchar(450)	900	Yes		Specifies the user's location within an organization, such as their office number, and maps to the location attribute in Active Directory.
Division	nvarchar(450)	900	Yes		Specifies the user's division and maps to the division attribute in Active Directory.
PersonalTitle	nvarchar(255)	510	Yes		Specifies the user's personal title, such as "Mr", "Mrs" or "Ms." Maps to the personalTitle attribute in Active Directory.
Description	nvarchar(255)	510	Yes		Specifies a description for the user and maps to the description attribute in Active Directory.
SecondLastName	nvarchar(50)	100	Yes		Specifies a second last name for the user, where such is used.
GenerationalSuffix	nvarchar(10)	20	Yes		Specifies a generational suffix for the user, such as "JR" or "SR." Maps to the generationQualifier attribute in Active Directory.
Initials	nvarchar(6)	12	Yes		Specifies the user's initials and maps to the initials attribute in Active Directory.
BirthName	nvarchar(255)	510	Yes		Specifies the name given to the user at birth.
DisplayNamePrintable	nvarchar(255)	510	Yes		Specifies the printable name for the user and maps to the displayNamePrintable attribute in Active Directory.
PreferredFirstName	nvarchar(50)	100	Yes		Specifies the preferred first name of the user.
PreferredLastName	nvarchar(50)	100	Yes		Specifies the preferred last name of the user.
JobTitle	nvarchar(255)	100	Yes		Specifies the user's job title within an organization and maps to the title attribute in Active Directory.
AboutMe	nvarchar(max)	max	Yes		Specifies user-defined demographic information about the user.
PreferredLanguage	nvarchar(50)	100	Yes		Preferred written or spoken language. If set, EmpowerID displays UIs in that language when localization is applied.
PostOfficeBox	nvarchar(50)	100	Yes		Specifies the post office box for the user and maps to the postOfficeBox attribute in Active Directory.
SocialSecurityNumber	nvarchar(50)	100	Yes		Specifies the social security number for the user. Note: EmpowerID does not mask these characters. Mask or store partial values if required.
NationalIdentificationNumber	nvarchar(50)	100	Yes		Specifies the national identification number for the user.
CarLicense	nvarchar(50)	100	Yes		Specifies the vehicle license/registration plate of the user's vehicle. Maps to the carLicense attribute in Active Directory.
Ethnicity	nvarchar(50)	100	Yes		Specifies the ethnicity of the user.
Gender	nvarchar(15)	30	Yes		Specifies the gender of the user.
District	nvarchar(256)	512	Yes		Specifies the district of the user.
Assistant	nvarchar(450)	900	Yes		Specifies an assistant to the user.
PhotoUrl	nvarchar(256)	512	Yes		Specifies the location of the user's photo.
IMAddress	nvarchar(256)	512	Yes		Specifies the instant messaging address of the user.
SIPAddress	nvarchar(256)	512	Yes		Specifies the SIP address of the user.
IdentityURL	nvarchar(256)	512	Yes		Specifies the identity URL for the user.
URLPersonal	nvarchar(256)	512	Yes		Specifies a personal URL for the user.
URLBusiness	nvarchar(256)	512	Yes		Specifies the business URL for the user.
URLOWA	nvarchar(256)	512	Yes		Specifies the OWA URL for the user.
Pager	nvarchar(50)	512	Yes		Specifies the pager number for the user.
IpPhone	nvarchar(50)	100	Yes		Specifies the user's IP phone number.
Fax	nvarchar(50)	100	Yes		Specifies a fax number for the user.
Notes	nvarchar(1024)	100	Yes		Field for inserting notes.
DateOfBirth	datetime	8	Yes		Specifies the date of birth for the user.
CityOfBirth	nvarchar(50)	100	Yes		Specifies the city of birth for the user.
CountryOfBirth	nvarchar(50)	100	Yes		Specifies the country of birth for the user.
EmployeeIDOther	nvarchar(50)	100	Yes		Specifies an alternative Employee ID for the user.
EmployeeType	nvarchar(50)	100	Yes		Specifies the user's employee type.
ExtensionAttribute1	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute2	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute3	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute4	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute5	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute6	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute7	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute8	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute9	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute10	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute11	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute12	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute13	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute14	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute15	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute16	xml	max	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute24	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute25	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute26	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute27	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
Alias	nvarchar(100)	200	Yes		Specifies an alias for the user.
TargetAddress	nvarchar(255)	510	Yes		Specifies a target address for the user.
Deleted	bit	1	No	((0))	Soft delete flag. See Note C.
DeletedDate	datetime	8	Yes		Specifies the date and time when the user was deleted from the external system. For information purposes only.
TerminationDate	datetime	2048	Yes		Specifies the date and time when the user was terminated from a hired condition.
Disabled	bit	1	No	((0))	Specifies whether the user is disabled.
LockedOut	bit	1	No	((0))	Specifies whether the user is locked out.
LockedOutTime	bigint	8	Yes		Specifies the time the user was locked out.
ExpiresOn	datetime	8	Yes		Specifies when the account expires.
ValidFrom	datetime	8	Yes		Specifies when the account is valid from.
ValidUntil	datetime	8	Yes		Specifies when the account is valid until.
PasswordNeverExpires	bit	1	No	((0))	Specifies whether the user's password is set to never expire.
CannotChangePassword	bit	1	No	((0))	Specifies whether the user can change their password.
PasswordExpires	datetime	8	Yes		Specifies the date and time a user's password expires.
PasswordLastChanged	datetime	8	Yes		Specifies the date and time the user last changed their password.
MustChangePasswordAtNextLogon	bit	1	No	((0))	Specifies whether the user must change their password the next time they log in to the system.
RequiresSmartCardForInteractiveLogon	bit	1	No	((0))	Specifies whether a smart card is required for logon.
EnableSyncPassword	bit	1	No	((1))	Specifies whether EmpowerID will synchronize the password set on the user's Person object back to the account for the user in the external system. See Note D.
DoNotAllowDelete	bit	1	No	((0))	Specifies whether the user can be deleted in EmpowerID workflows.
LastLogonTime	datetime	8	Yes		Specifies the last logon time.
Status	nvarchar(50)	100	Yes		Used to specify the condition of the user in an external system (e.g., "pre-hire", "on leave", "terminated"). Can trigger RET policies for provisioning and deprovisioning resources.
SecurityIdentifier	nvarchar(255)	510	Yes		Specifies the unique value used to identify the user account and maps to the securityIdentifier attribute in Active Directory.
SID	nvarchar(255)	510	Yes		Specifies the unique value that identifies the user as a security principal. Maps to the objectSid attribute in Active Directory.
DistinguishedName	nvarchar(2048)	4096	Yes		Specifies the location of the user object in the external system.
UserPrincipalName	nvarchar(255)	510	Yes		Specifies the UPN of the user.
ProfilePath	nvarchar(450)	900	Yes		Specifies the path to the user's profile. Maps to the profilePath attribute in Active Directory.
LogonScript	nvarchar(450)	900	Yes		Specifies the logon script to run for the user, if any.
HomeDirectory	nvarchar(450)	900	Yes		Specifies the home directory for the user. Maps to the homeDirectory attribute in Active Directory.
HomeDrive	nvarchar(5)	10	Yes		Specifies the drive letter to which to map the UNC path set for HomeDirectory. Maps to the homeDrive attribute in Active Directory.
AllowDialin	bit	1	Yes		Specifies whether the user can connect remotely.
HideInEmpowerID	bit	1	No	((0))	Specifies whether the account will be hidden from most views in EmpowerID.
AllowJoin	bit	1	No	((1))	Specifies whether EmpowerID will join the user account to an EmpowerID Person.
AllowProvision	bit	1	No	((1))	Specifies whether EmpowerID will provision a new EmpowerID Person for the user account upon inventory.
ConfigurationXml	xml	max	Yes		Extensibility field. Reserved.
SystemChangedDate	datetime	8	Yes		For sync tracking. See Note D.
CreatedDate	datetime	8	No	(getutcdate())	Auto-populated with the UTC time corresponding to the date and time the user record is created.
ChangedTime	timestamp	8	No		Auto-updated timestamp when record modified. See Note E.

Field Notes

Note A — BusinessRoleID / BusinessRoleName

When populating Business Role data, set either BusinessRoleID or BusinessRoleName.

• If the user has more than one Business Role and Location, use the UserBusinessRoleLocation table (EmpowerID performs a union of User table and UserBusinessRoleLocation data).
• If multiple entries exist in UserBusinessRoleLocation for a user, the record with the lowest priority becomes the primary Business Role.

Used by

RBAC membership in Business Roles and Locations; Role & Location Compiler / Processor jobs update a Person’s primary Business Role and Location and remove secondary Locations based on mappings.

---

Note B — LocationID / LocationName

When populating Location data, set either LocationID or LocationName.

• If the user has multiple Locations, use UserBusinessRoleLocation (union logic applies).
• If multiple entries exist, the record with the lowest priority becomes the primary Location.

Used by

RBAC membership and Role & Location Compiler / Processor jobs (same behaviors as Business Role).

---

Note C — Deleted (Soft Delete)

Do not physically delete rows from the User table. If the record no longer exists in the source system:

• Set Deleted = 1 and optionally populate DeletedDate (informational).
• If identifiers like LogonName might be reused in the future, update the old LogonName at delete time to avoid collisions when a new user later takes the same value.

Why this matters

Inventory might run while the table is empty if you bulk remove/reload data; EmpowerID could interpret this as users losing memberships, causing unintended de-provisioning.

---

Note D — SystemChangedDate (Sync Best Practice)

Optional field to help track source-of-truth changes.

Best practice: Compare the object’s ID and SystemChangedDate here with the external system. If the external SystemChangedDate is later, sync that record to the Universal Connector DB before EmpowerID inventories it.

---

Note E — ChangedTime (Inventory Delta)

ChangedTime is system-maintained:

• Timestamp updates whenever any values in the record are modified.
• Do not insert or update ChangedTime manually.

Inventory behavior:

• On the first inventory, EmpowerID pulls all records from the Universal Connector database into the Identity Warehouse.
• On subsequent inventories, EmpowerID compares ChangedTime to the last run; if newer, it updates the corresponding record in the Identity Warehouse.

Practical tip

If you write ETL that touches a row without a real data change, avoid bumping the row unnecessarily—doing so will cause EmpowerID to reprocess it.

Group Table

Field	Data Type	Max Length (Bytes)	Optional	Default	Description
GroupGUID	uniqueidentifier	16	No	(newid())	Uniquely identifies a group in EmpowerID. If this field is blank, EmpowerID will generate the guid. This field should never be updated for the life of the record.
GroupID	nvarchar(200)	400	No		Specifies the ID for group from the external system. The value of this field must be unique for each group. This field should never be deleted or updated for the life of the record.
LogonName	nvarchar(200)	400	No		Specifies the group LogonName. The value of this field should be unique.
Name	nvarchar(200)	400	Yes		Specifies the name of the group. This value should be unique.
FriendlyName	nvarchar(255)	510	Yes		Specifies the name of the group shown to users in EmpowerID user interfaces.
Description	nvarchar(max)	max	Yes		Specifies a description for the group.
IsMailEnabled	bit	1	No	((0))	Specifies whether the group is mail-enabled.
Email	nvarchar(100)	512	Yes		Specifies the email address for the group.
MailNickName	nvarchar(256)	512	Yes
Notes	nvarchar(max)	max	Yes
ExtensionAttribute1	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute2	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute3	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute4	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute5	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute6	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute7	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute8	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute9	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute10	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute11	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute12	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute13	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute14	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute15	nvarchar(1024)	2048	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute16	xml	max	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute17	varbinary(max)	max	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute18	varbinary(max)	max	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute19	bit	1	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute20	bit	1	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute21	bit	1	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute22	bit	1	Yes		Can be used for setting a unique attribute value.
Deleted	bit	1	No	((0))	Specifies whether the group has been deleted. See Note F.
DeletedDate	datetime	8	Yes		Specifies the date and time when the group was deleted. For information purposes only.
DoNotAllowDelete	bit	1	No	((0))	Specifies whether the group can be deleted in EmpowerID workflows.
AllowJoinRequests	bit	1	No	((1))	Specifies whether the group will be visible in workflows that allow users to request group membership. Also specifies whether the group appears in the IT Shop as a requestable resource.
AutoAcceptJoinLeaveRequests	bit	1	No	((0))	Specifies whether users can join or leave the group without requiring access permission to the JoinGroup or LeaveGroup workflows.
HIdeInEmpowerID	bit	1	No	((0))	Specifies whether the group will be hidden in most EmpowerID views.
HIdeMembership	bit	1	No	((0))	Specifies whether group membership will be hidden in most EmpowerID views.
IsHighSecurityGroup	bit	1	No	((0))	Specifies whether the group is a high security group. If true, the group will be flagged and appear in some reports and SetGroups as such.
ValidFrom	datetime	8	Yes
ValidUntil	datetime	8	Yes
DistinguishedName	nvarchar(2048)	4096	Yes		Specifies the location of the group in the external system.
ConfigurationXml	xml	max	No	((1))	Extensibility field. Reserved.
SystemChangedDate	datetime	8	Yes		Optional field for tracking source-system changes. See Note G.
CreatedDate	datetime	8	Yes		This field is auto-populated with the UTC time corresponding to the date and time the record is created.
ChangedTime	timestamp	8	No	(getutcdate())	Auto-populated timestamp corresponding to the time a modification occurs to the group. See Note H.

Field Notes — Group Table

Note F — Deleted (Soft Delete for Groups)

Do not physically delete rows from the Group table. If the group no longer exists in the source system:

• Set Deleted = 1 and optionally set DeletedDate.
• If identifiers like LogonName may be reused, update the old LogonName to avoid collisions later.

---

Note G — SystemChangedDate (Sync Best Practice)

Optional field for tracking changes in the source system.

Best practice: Compare the object’s ID and SystemChangedDate here with the source. If newer in the source, sync before EmpowerID inventories.

---

Note H — ChangedTime (Inventory Delta for Groups)

ChangedTime is system-maintained:

• Timestamp updates whenever group values are modified.
• Do not insert or update manually.

Inventory behavior:

• Initial inventory: pulls all group records into the Identity Warehouse.
• Subsequent runs: compares ChangedTime against the last run; if newer, the corresponding record is updated.

Location Table

This table is used to manage location information. Each record inserted into the table is represented as an external location in EmpowerID. The schema for this table allows organizations to insert data to represent all possible locations to which users can belong within the organization, including departments, divisions, geographical sites, org charts, and functional areas. As with the Business Role table, each location inserted into the table can be mapped to an EmpowerID Location. Assigning users to one or more locations in this table assigns those users to one or more locations in EmpowerID according to the mapping rules set for those locations.

info

To avoid resource-intensive calls to the EmpowerID synchronization engine, update records in this table only when the corresponding records in the external system change.

Field	Data Type	Max Length (Bytes)	Optional	Default	Description
LocationGUID	uniqueidentifier	16	No	(newid())	Uniquely identifies a location in EmpowerID. If this field is blank, EmpowerID will generate the guid. This field should never be updated for the life of the record.
LocationID	nvarchar(200)	400	No		Specifies the ID for the location in the external system. The value of this field must be unique for each location. This field should never be deleted or updated for the life of the record.
Name	nvarchar(200)	400	Yes		Specifies the name of the location. This value should be unique.
ParentLocationID	nvarchar(200)	400	Yes		Specifies the ID of the location's parent. You can populate either this field or ParentName.
ParentName	nvarchar(200)	400	Yes		Specifies the name of the location's parent. You can populate either this field or ParentLocationID.
FriendlyName	nvarchar(255)	510	Yes		Specifies the name of the location shown to users in EmpowerID user interfaces.
Description	nvarchar(512)	1024	Yes		Specifies a description for the location.
ExtensionAttribute1	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute2	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute3	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute4	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute5	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute6	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute7	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute8	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute9	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute10	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute11	nvarchar(max)	max	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute12	nvarchar(max)	max	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute13	xml	max	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute14	varbinary(max)	max	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute15	varbinary(max)	max	Yes		Can be used for setting a unique attribute value.
Deleted	bit	1	No	((0))	Specifies whether the location has been deleted. See Note I.
DeletedDate	datetime	8	Yes		Specifies the date and time when the location was deleted. Informational only.
IsAssignable	bit	1	No	((1))	Specifies whether the location can be selected from the Location trees in EmpowerID. Set to false if you do not want users to be assigned.
ShowInTree	bit	1	No	((1))	Specifies whether the location appears in the Location trees in EmpowerID.
ConfigurationXml	xml	max	No	((1))	Extensibility field. Reserved.
SystemChangedDate	datetime	8	Yes		Optional field for tracking source-system changes. See Note J.
CreatedDate	datetime	8	Yes	(getutcdate())	Auto-populated with the UTC time when the record is created.
ChangedTime	timestamp	8	No		Auto-populated timestamp when the record is modified. See Note K.

Field Notes — Location Table

Note I — Deleted (Soft Delete for Locations)

Do not physically delete rows from the Location table. If the location no longer exists in the source system:

• Set Deleted = 1 and optionally set DeletedDate.
• If identifiers like Name might be reused, update the old Name value to avoid collisions.

---

Note J — SystemChangedDate (Sync Best Practice)

Optional field to help track source-of-truth changes.

Best practice: Compare ID and SystemChangedDate here against the external system. If newer in the source, sync before EmpowerID inventories.

---

Note K — ChangedTime (Inventory Delta for Locations)

ChangedTime is system-maintained:

• Timestamp updates whenever location values are modified.
• Do not update manually.

Inventory behavior:

• Initial inventory: pulls all location records into the Identity Warehouse.
• Subsequent runs: compares ChangedTime with the last run; if newer, the record is updated.

Business Role Table

This table is used to manage Business Role information. Each record inserted into the table is represented as an External Business Role in EmpowerID that can be mapped to any EmpowerID Business Roles.

info

To avoid resource-intensive calls to the EmpowerID synchronization engine, update records in this table only when the corresponding records in the external system change.

Field	Data Type	Max Length (Bytes)	Optional	Default	Description
BusinessRoleGUID	uniqueidentifier	16	No	(newid())	Uniquely identifies a Business Role in EmpowerID. If this field is blank, EmpowerID will generate the guid. This field should never be updated for the life of the record.
BusinessRoleID	nvarchar(200)	400	No		Specifies the ID for the Business Role in the external system. The value of this field must be unique. This field should never be deleted or updated for the life of the record.
Name	nvarchar(200)	400	Yes		Specifies the name of the Business Role. This value should be unique.
ParentName	nvarchar(200)	400	Yes		Specifies the name of the Business Role's parent. You can populate this field or use another parent identifier.
FriendlyName	nvarchar(255)	510	Yes		Specifies the name of the Business Role shown to users in EmpowerID user interfaces.
Description	nvarchar(512)	1024	Yes		Specifies a description for the Business Role.
ExtensionAttribute1	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute2	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute3	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute4	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute5	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute6	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute7	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute8	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute9	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute10	nvarchar(500)	1000	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute11	nvarchar(max)	max	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute12	nvarchar(max)	max	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute13	xml	max	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute14	varbinary(max)	max	Yes		Can be used for setting a unique attribute value.
ExtensionAttribute15	varbinary(max)	max	Yes		Can be used for setting a unique attribute value.
Deleted	bit	1	No	((0))	Specifies whether the Business Role has been deleted. See Note L.
DeletedDate	datetime	8	Yes		Specifies the date and time when the Business Role was deleted. Informational only.
IsAssignable	bit	1	No	((1))	Specifies whether the Business Role can be selected from the Business Role trees in EmpowerID.
ShowInTree	bit	1	No	((1))	Specifies whether the Business Role appears in the Business Role trees in EmpowerID.
ConfigurationXml	xml	max	No	((1))	Extensibility field. Reserved.
SystemChangedDate	datetime	8	Yes		Optional field for tracking source-system changes. See Note M.
CreatedDate	datetime	8	Yes	(getutcdate())	Auto-populated with the UTC time when the record is created.
ChangedTime	timestamp	8	No		Auto-populated timestamp when the record is modified. See Note N.

Field Notes — Business Role Table

Note L — Deleted (Soft Delete for Business Roles)

Do not physically delete rows from the Business Role table. If the role no longer exists in the source system:

• Set Deleted = 1 and optionally set DeletedDate.
• If identifiers like Name might be reused, update the old Name to avoid collisions.

---

Note M — SystemChangedDate (Sync Best Practice)

Optional field to help track source-of-truth changes.

Best practice: Compare the object’s ID and SystemChangedDate here against the external system. If newer in the source, sync before EmpowerID inventories.

---

Note N — ChangedTime (Inventory Delta for Business Roles)

ChangedTime is system-maintained:

• Timestamp updates whenever Business Role values are modified.
• Do not update manually.

Inventory behavior:

• Initial inventory: pulls all Business Role records into the Identity Warehouse.
• Subsequent runs: compares ChangedTime with the last run; if newer, the record is updated.

UserGroup Table

This table is used to map users with multiple group entries. The data in this table should be synchronized with the state of information from the external system.

caution

When changes to the objects in your external system originate there, do not remove and repopulate this table with new values. If EmpowerID inventories during a moment when the table is empty, it may interpret this as users being removed from their groups, causing updates and unintended de-provisioning. Use a change-sync strategy instead of full reloads.

info

When a user is added to or removed from a group, the ChangedTime field on the appropriate records in the User table of the Universal Connector database is updated. At the next inventory, EmpowerID detects the change and updates the corresponding records in the EmpowerID Identity Warehouse.

Field	Data Type	Max Length (Bytes)	Optional	Default	Description
GroupID	nvarchar(200)	400	No		Specifies the GroupID for the group to which the user belongs.
UserID	nvarchar(200)	400	No		Specifies the UserID of the user belonging to the group.
CreatedDate	datetime	8	Yes	(getutcdate())	Auto-populated with the UTC time when the record is created.

Field Notes — UserGroup Table

Note O — Sync Strategy

• Do not bulk delete and reload this table.
• Always sync only the changed relationships.
• Prevents EmpowerID from misinterpreting a temporary empty state as group removals.

---

Note P — ChangedTime Link

Although this table does not contain a ChangedTime field itself, user–group membership changes are captured indirectly:

• Any change here triggers an update to the ChangedTime field on the User record.
• EmpowerID inventories that delta and synchronizes group memberships accordingly.

UserBusinessRoleLocation Table

This table is used to associate users with Business Role and Location combinations. It can be used in conjunction with, or as a replacement for, the Business Role and Location fields in the User table. EmpowerID performs a union of the data between both sources.

caution

When changes to the objects in your external system originate there, do not remove and repopulate this table with new values. If EmpowerID inventories during a moment when the table is empty, it may interpret this as users being removed from their Business Roles and Locations, causing updates and unintended de-provisioning. Always use a sync strategy that captures changes only.

Additionally:

• Data in this table should not overlap with the Business Role and Location values already specified in the User table.
• The Priority value must always be greater than 0.

info

When a user is added to or removed from a Business Role and Location, the ChangedTime field on the appropriate User table record is updated. On the next inventory cycle, EmpowerID detects this delta and updates the corresponding records in the Identity Warehouse.

Field	Data Type	Max Length (Bytes)	Optional	Default	Description
UserID	nvarchar(200)	200	No		Specifies the UserID of the user in the Business Role and Location.
BusinessRoleID	nvarchar(200)	200	No		Specifies the BusinessRoleID of the user's Business Role.
LocationID	nvarchar(200)	200	No		Specifies the LocationID of the user's location.
Priority	int	4	No	((0))	Orders the Business Role and Location combinations for the user. In EmpowerID, higher-priority combinations resolve ties between policies (e.g., Resource Entitlements, Default Person Attributes).

Field Notes — UserBusinessRoleLocation Table

Note Q — Sync Strategy

• Never wipe and reload this table wholesale.
• Always apply incremental updates.
• Prevents EmpowerID from treating temporary emptiness as removals.

---

Note R — Overlap with User Table

• Avoid duplicating Business Role and Location data already in the User table.
• EmpowerID unions the values from both sources, so duplication may cause conflicting state.

---

Note S — Priority Rules

• Priority must be greater than 0.
• Higher values take precedence when policy conflicts exist.
• Used to decide which RET policies or Default Person Attributes apply to the user.

Outbound Data

Once data has been imported into EmpowerID, you can use the bidirectional capabilities of the Universal Connector to write any changes occurring in EmpowerID back to the originating system. The Universal Connector provides two options:

1. Real-time processing (recommended)
2. Batch processing

info

The method EmpowerID uses to handle change processing depends on the settings applied to the Universal Connector account store.

---

Real-time Processing

With real-time processing, updates are sent as they occur in EmpowerID.
To implement this, you must create a .NET module that:

• References TheDotNetFactory.Framework.Connectors.StandardConnector.dll
• Implements the IChangeLogProcessor interface

The IChangeLogProcessor exposes methods that process changes to EmpowerID objects against your backend system.

tip

IChangeLogProcessor is provided as a reference implementation.
You may use any other coding or scripting approach to read from the change log and apply updates to your system.

---

Methods Exposed by IChangeLogProcessor

Method	Description
bool CreateBusinessRole(Dictionary<string, object> attributes, out string businessRoleID)	Invoked when a new Business Role is created in EmpowerID. Returns true if successful. Parameters: attributes — Name/value pairs of properties. Minimum required: Name, BusinessRoleGUID businessRoleID — Outbound parameter returning the unique ID of the created record in the target system
bool CreateGroup(Dictionary<string, object> attributes, out string groupID)	Invoked when a new group is created. Returns true if successful. Parameters: attributes — Name/value pairs of properties. Minimum required: Name, GroupGUID, plus any user-entered attributes groupID — Outbound parameter returning the unique ID in the target system
bool CreateUser(Dictionary<string, object> attributes, out string userID)	Invoked when a new user is created. Returns true if successful. Parameters: attributes — Name/value pairs. Minimum required: Name, UserGUID, LogonName. Includes RET provisioning attributes and other user-entered values userID — Outbound parameter returning the unique ID in the target system
bool CreateLocation(Dictionary<string, object> attributes, out string locationID)	Invoked when a new location is created. Returns true if successful. Parameters: attributes — Name/value pairs. Minimum required: Name, LocationGUID locationID — Outbound parameter returning the unique ID in the target system
bool DeleteBusinessRole(string businessRoleID)	Invoked when a Business Role is deleted. Returns true if successful. Parameters: businessRoleID — Unique ID of the record in the target system
bool DeleteGroup(string groupID)	Invoked when a group is deleted. Returns true if successful. Parameters: groupID — Unique ID of the group in the target system
bool DeleteUser(string userID)	Invoked when a user is deleted. Returns true if successful. Parameters: userID — Unique ID of the user in the target system
bool DeleteLocation(string locationID)	Invoked when a location is deleted. Returns true if successful. Parameters: locationID — Unique ID of the location in the target system
bool Disable(string userID)	Invoked when a user becomes disabled. Returns true if successful. Parameters: userID — Unique ID of the user in the target system
bool Enable(string userID)	Invoked when a previously disabled user is re-enabled. Returns true if successful. Parameters: userID — Unique ID of the user in the target system
bool ResetPassword(string userID, string password)	Invoked when a user's password is reset. Returns true if successful. Parameters: userID — Unique ID in the target system password — The new password
bool RestoreGroup(string groupID)	Invoked when a deleted group is restored. Returns true if successful. Parameters: groupID — Unique ID of the group in the target system
bool RestoreUser(string userID)	Invoked when a deleted user is restored. Returns true if successful. Parameters: userID — Unique ID of the user in the target system
bool Unlock(string userID)	Invoked when a locked-out user is unlocked. Returns true if successful. Parameters: userID — Unique ID of the user in the target system
bool UpdateBusinessRole(string businessRoleID, Dictionary<string, object> attributes)	Invoked when Business Role attributes are updated. Returns true if successful. Parameters: businessRoleID — ID in target system attributes — Name/value pairs of changed fields
bool UpdateGroup(string groupID, Dictionary<string, object> attributes)	Invoked when group attributes are updated. Returns true if successful. Parameters: groupID — ID in target system attributes — Name/value pairs of changed fields
bool UpdateLocation(string locationID, Dictionary<string, object> attributes)	Invoked when location attributes are updated. Returns true if successful. Parameters: locationID — ID in target system attributes — Name/value pairs of changed fields
bool UpdateUser(string userID, Dictionary<string, object> attributes)	Invoked when user attributes are updated. Returns true if successful. Parameters: userID — ID in target system attributes — Name/value pairs of changed fields
bool RemoveFromGroup(List<string> userIDs, string groupID)	Invoked when users are removed from a group. Returns true if successful. Parameters: groupID — ID of the group userIDs — List of user IDs removed
bool AddToGroup(string userID, string groupID)	Invoked when a user is added to a group. Returns true if successful. Parameters: groupID — ID of the group userID — ID of the user
bool SetGroupMembers(List<string> userIDs, string groupID)	Invoked when EmpowerID explicitly sets group membership. Returns true if successful. Parameters: groupID — Target group userIDs — Definitive list of members (others removed)

Batch Processing

When the Universal Connector account store is set for batch processing, EmpowerID writes each change that occurs in EmpowerID to the ChangeLog table in the Universal Connector database. Your integration code then reads the log and applies those changes to the managed system.

info

To employ batch processing, you must write application-specific code that reads from the ChangeLog table and processes the entries against your target system.

ChangeLog Table — Fields

Field	Description
ChangeLogID	Unique identifier for the change log event.
ObjectID	Unique identifier (object GUID) that corresponds to the changed object. This GUID is generated by EmpowerID during inventory.
ChangeLogObjectTypeID	Specifies what type of object was changed, as defined by the ChangeLogObjectType table. See the mapping table below.
ChangeLogTypeID	Specifies what type of change occurred to the object, as defined by the ChangeLogType table. See the mapping table below.
ChangeLogData	XML-formatted payload describing the change that occurred.
ProcessTime	(Optional) Timestamp your integration can set to indicate when the event was processed.
ProcessStatus	(Optional) Status code your integration can set to track the processing state of the event. See Field Notes — ChangeLog for suggested codes.
FailedCount	(Optional) Number of times processing this event has failed in your client application (useful to trigger retries/backoff).
LockedByServer	(Optional) Identifier of the server that has claimed this event (prevents multiple servers from processing the same event concurrently).
ModifiedDate	Date and time in UTC when the object was modified in EmpowerID.
ConfigurationXml	Reserved field for extensibility.
CreatedDate	Date and time in UTC when the change event was created in EmpowerID. Entries are written chronologically by CreatedDate. It is recommended to process oldest to newest by this column.

ChangeLogObjectType — Mapping

ChangeLogObjectTypeID	Object Type
1	User
2	Group
3	Location
4	Business Role

ChangeLogType — Mapping

For each entry in ChangeLog, the change type is one of the following:

ChangeLogTypeID	Name	Description
1	Create	Object was created in EmpowerID.
2	Update	One or more object attributes were edited in EmpowerID.
3	Delete	Object was deleted in EmpowerID.
4	ResetPassword	User’s password was reset in EmpowerID.
5	Enable	Previously disabled user account was enabled in EmpowerID.
6	Disable	Previously enabled user account was disabled in EmpowerID.
7	AddToGroup	Object was added to a group in EmpowerID.
8	RemoveFromGroup	Object was removed from a group in EmpowerID.
9	SetGroupMembers	Contains the definitive list of users that should belong to a specific group.
10	Move	Object was moved from one location to another in EmpowerID.
11	Unlock	Locked user account was unlocked in EmpowerID.
12	Restore	Previously deleted object was restored in EmpowerID.

Field Notes — ChangeLog

Note T — Suggested ProcessStatus Codes

EmpowerID suggests (and internally uses) the following status codes. You may adopt these or define your own scheme.

• 0 — Event not processed (default).
• 1 — Event claimed by a server, processing not yet complete. Use this to prevent multiple servers from processing the same event.
• 2 — Event processed successfully.
• 3 — Error occurred processing the event.
• 4 — Event ignored (intentionally skipped).

---

Note U — Ordering & Throughput

• Process ChangeLog entries in CreatedDate order (oldest → newest).
• Use LockedByServer + ProcessStatus = 1 to safely distribute work across multiple workers without double-processing.
• Increment FailedCount and retain error details in your own telemetry to implement retries or dead-letter handling.

---

Note V — Reading ChangeLogData

• The ChangeLogData field is XML; the schema varies by ChangeLogTypeID and object type.
• Your processor should validate expected elements and handle unknown/extra elements gracefully (forward compatibility).

---

Note W — Move / SetGroupMembers Semantics

• Move (10): Expect source + destination location identifiers in ChangeLogData. Apply idempotently (replays must be safe).
• SetGroupMembers (9): Treat the provided list as authoritative. Your code should add missing members and remove extra members not in the list.

Registering Your Change Log Adapter

Once you’ve developed your real-time or batch-processing module, register the assembly in EmpowerID by updating the ChangeLogAdapterAssembly and ChangeLogAdapterType fields for your organization’s Universal Connector resource system.

Follow these steps in the EmpowerID Web interface:

1. From the Navigation Sidebar, expand Admin > Applications and Directories and click Account Stores and Systems.

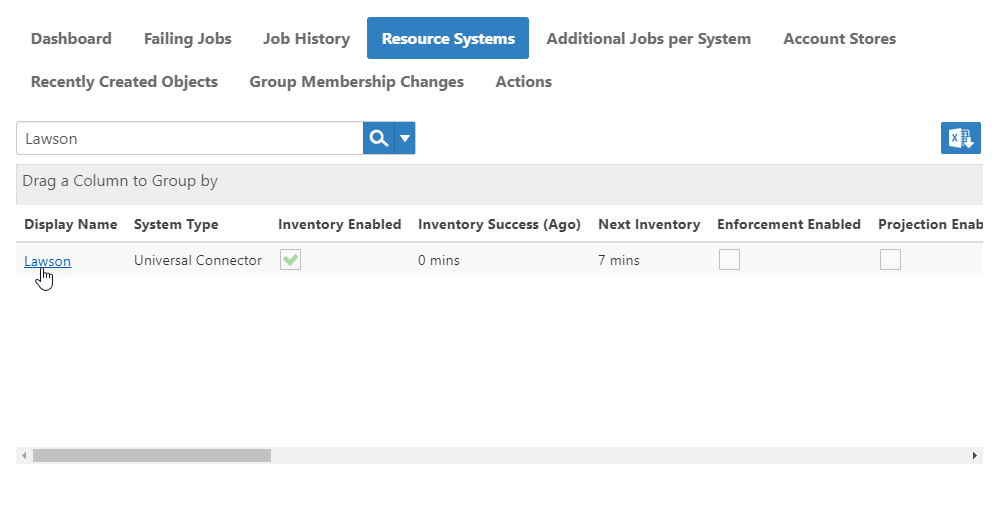

2. Click the Resource Systems tab and locate your Universal Connector resource system.
3. Click the Display Name link for the resource system.

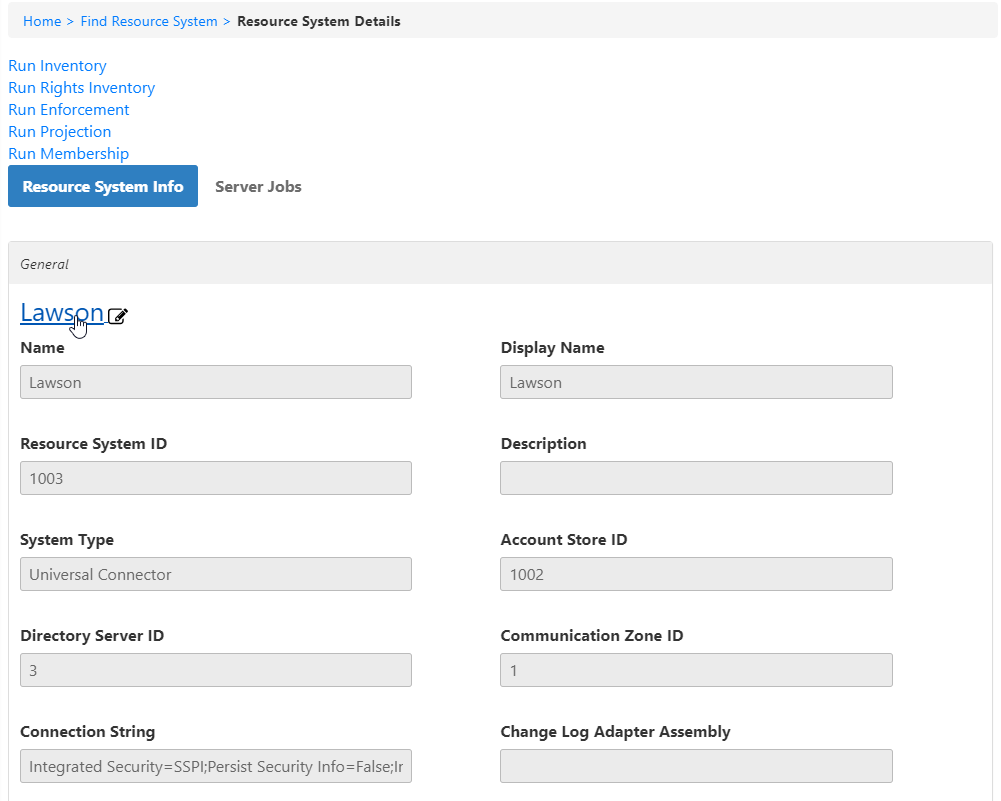

4. On the Resource System Details page that opens, click Edit.

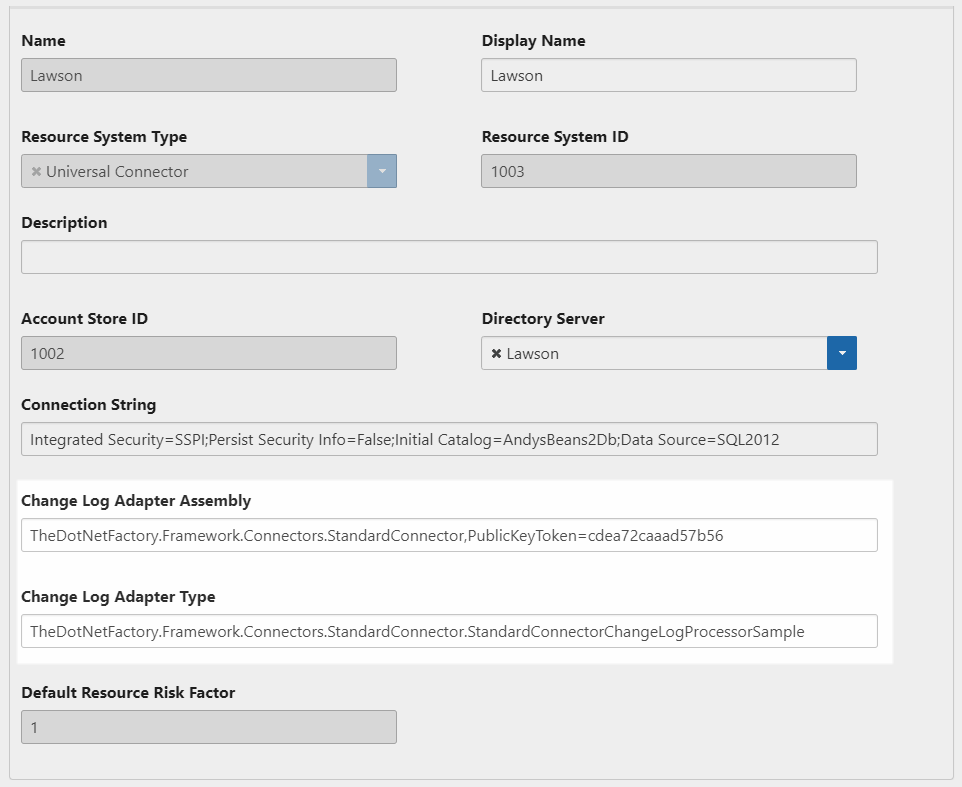

5. In the Edit page, locate the fields ChangeLogAdapterAssembly and ChangeLogAdapterType, update them appropriately, and then click Save.


Field Notes — Adapter Registration

Note X — Required Values

Correct field values are required

• ChangeLogAdapterAssembly must contain the name of your assembly.
• ChangeLogAdapterType must contain the namespace-qualified type name of the adapter in that assembly.
